Sensor
| Applicable Model |

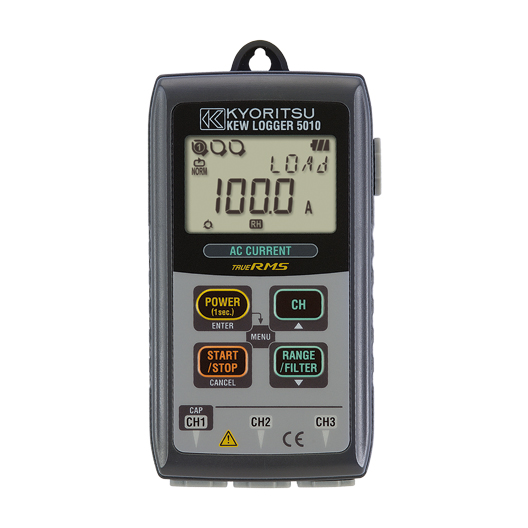

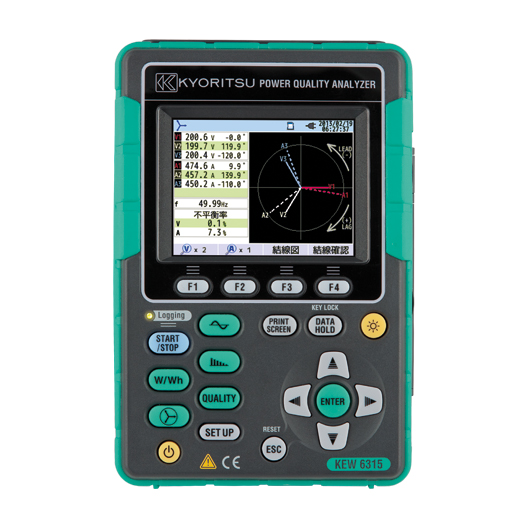

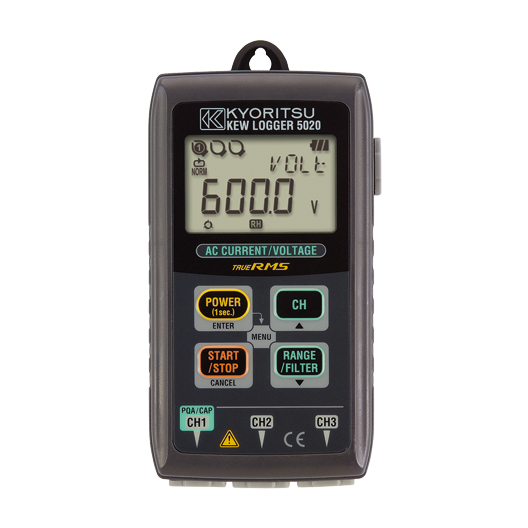

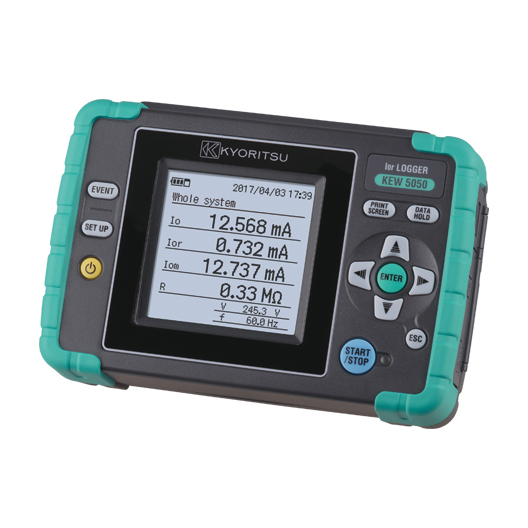

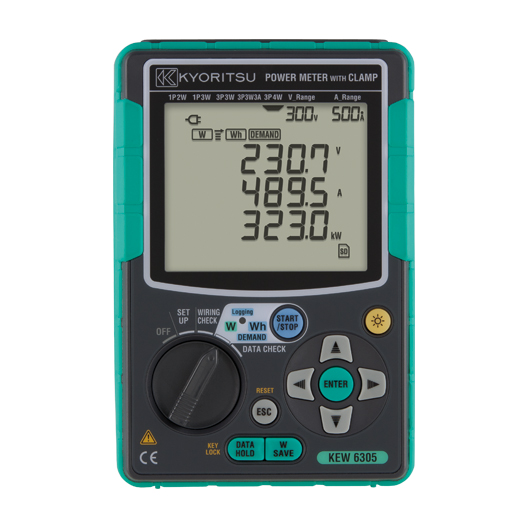

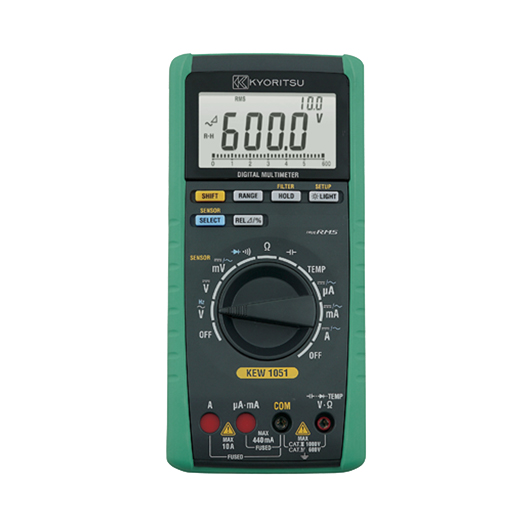

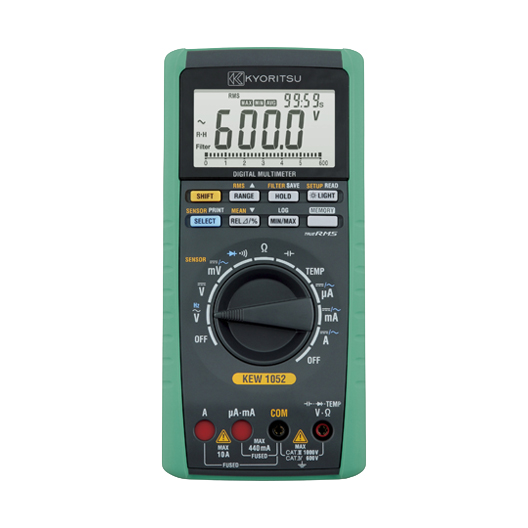

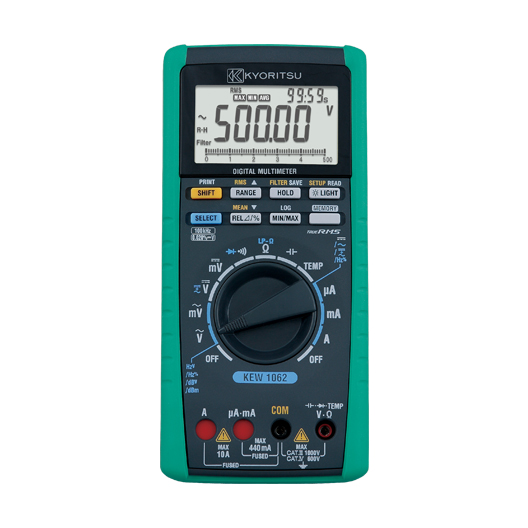

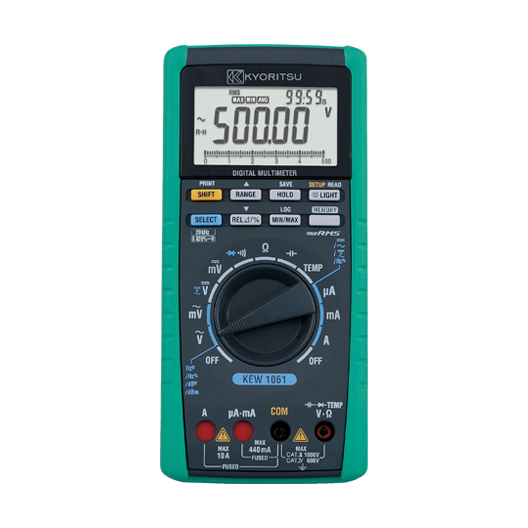

1051 | 1052 | 1061 | 1062 | 5010 | 5020 | 5050 | 6305 | 6315 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Load current | ||||||||||
| 8121 | ● | ● | ● | ● | ● | ● | △*12 | |||
| 8122 |
● | ● | ● | ● | ● | ● | △*12 | |||
| 8123 | ● | ● | ● | ● | ● | ● | △*12 | |||
| 8124 | ● | ● | △*12 | ● | ● | |||||
| 8125 | △*1 | △*1 | △*12 | ● | ● | |||||
| 8126 | △*2 | △*2 | △*12 | ● | ● | |||||
| 8127 | △*3 | △*3 | △*12 | ● | ● | |||||
| 8128 | ● | ● | △*12 | ● | ● | |||||
| 8130 | △*4 | △*5 | △*12 | ● | ● | |||||
| 8133 | △*12 | △*7 | △*9 | |||||||
| 8135 | ● | ● | △*6*8 | △*10 | ||||||
| Leacage current & Load current | ||||||||||
| 8146 | ● | ● | ● | ● | ● | ● | △*12 | △*11 | ||
| 8147 | ● | ● | ● | ● | ● | ● | △*12 | △*11 | ||
| 8148 | ● | ● | ● | ● | ● | ● | △*12 | △*11 | ||
| Ior Leacage current | ||||||||||
| 8177 | ● | |||||||||
| 8178 | ● | |||||||||
| Voltage sensor | ||||||||||
| 8309 | ● | |||||||||
*1-6: Can use with after the following serial numbers.
*1: 8125 No.02637-
*2: 8126 No.00151-
*3: 8127 No.00181-
*4: 5010 No.8029792-
*5: 5020 No.8031560-
*6: 6305 No.8369312-
*7-10: Can use with after the following firmware versions.
*7: 6305 V1.10-
*8: 6305 V2.00-
*9: 6315 V1.50-
*10: 6315 V3.00-
*11:Cannot be used for power measurement.
*12:Cannot be used for Ior measurement.
