Load current clamp sensors

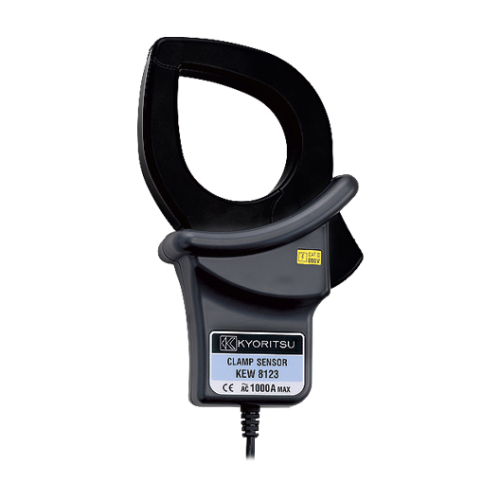

KEW 8123

KEW 8123
CE
Ø55mm
  • φ55
  • MAX1000A
Applicable model 501050205050(*)

* Please check the "Applicable model list" before using the product.

Conductor size Ø55mm
Rated current AC 1000A
Output voltage AC 500mV/1000A (AC 0.5mV/A)
Accuracy ±2.0%rdg±0.3mV (50/60Hz)
±3.0%rdg±0.5mV (40Hz - 1kHz)
Cable length Approx. 2m
Output connector MINI DIN 6pin
Output impedance Approx. 1.5Ω
Applicable standards IEC 61010-1, IEC 61010-2-032 CAT III 600V pollution degree 2, IEC 61326
Operating temperature & humidity range 0 - 40ºC, less than 85% RH (without condensation)
Dimensions 170(L) x 105(W) x 48(D) mm
Weight Approx.360g
Included Accessories 9094 (Carrying case), Instruction manual, Cable marker
Optional Accessories 7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)
