Ior Leakage current Clamp sensors

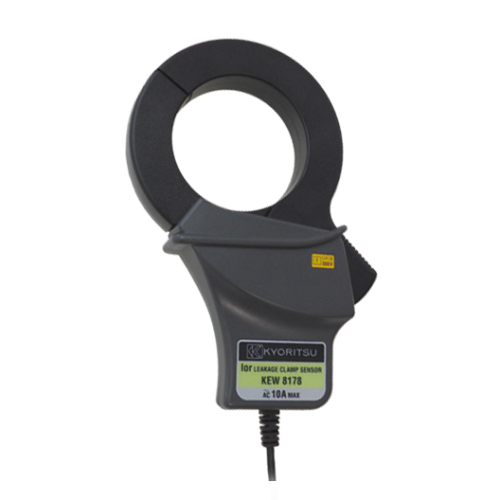

KEW 8178

KEW 8178
CE
Ø68mm
Applicable model5050
  • φ68
  • ACA
Conductor size Ø68mm
Rated current 10A (rms) AC (14.1Apeak)
Output voltage 500mV AC/10A AC
Accuracy ±1.0%rdg±0.025mV (40Hz - 70Hz)
±4.0%rdg±0.025mV (30Hz - 5kHz, with inputs of 100mA or more)
Phase shift within 1.0%
(45 - 70Hz while combining with KEW 5050, under the input of
10% or more of KEW 5050 leakage current range)
Cable length Approx. 3m
Output connector MINI DIN 6pin
Output impedance Approx. 60Ω or less
Applicable standards IEC 61010-1, IEC 61010-2-032
CAT Ⅲ 300V Pollution degree 2, IEC 61326-1
Operating temperature & humidity range -10 - 50°C, relative humidity 85% or Less (no condensation)
Dimensions 186(L) × 129(W) × 53(D)mm
Weight Approx. 560g
Optional Accessories 9094 (Carrying case),
Instruction manual, Cable marker
