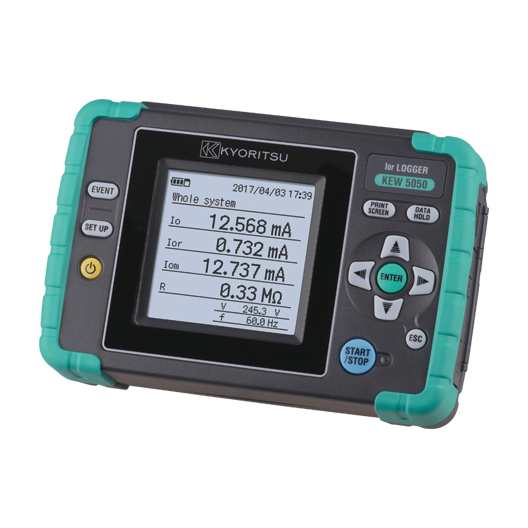

Ior LOGGER
Unpreceded Ior Logger!
- Provides simultaneous measurements and logs up to 4 channels
- Supports various wiring systems
(Single-phase 2&3-wire, Three-phase 3&4-wire*) *Except Ior for 3 Phase 4 wire - World's fastest class speed at 200ms interval for leakage current measurement
- Offers both traditional leakage / load current measurements
- Large graphic display and magnet on the back case to attach it on metal enclosures
3D View
Specification
Wiring configuration | 1P2W, 1P3W, 3P3W, 3P4W | |
---|---|---|
Measurements and parameters |
Ior : Leakage current (Trms) with resistive components only Io : Leakage current (Trms) with basic wave of 50/60Hz only Iom : Leakage current (Trms) including harmonic components V : Reference voltage (Trms) with basic wave of 50/60Hz only Vm : Reference voltage (Trms) including harmonic components R : Insulation resistance, Frequency(Hz), Phase angle(θ) |
|
Other functions | Digital output, Print screen, Backlight, Data hold | |
Recording Interval | 200/400ms/1/5/15/30s/1/5/15/30m/1/2hours | |
Ior | ||
Range | 10.000/100.00/1000.0mA/10.000A/AUTO | |
Accuracy | For reference voltages of sine wave 40 - 70Hz and 90V Trms or higher, ±0.2%rdg±0.2%f.s. + clamp sensor amplitude accuracy + error of phase accuracy* (phase error) * add ±2.0%rdg to measured Io value when using Ior leakage clamp sensor. (θ: within the accuracy of reference voltage/ current phase difference ±1.0°) |
|
Allowable input | 1% - 110% (Trms) of each range, and 200% (peak) of the range | |
Display range | 0.15% - 130% (display “0” for less than 0.15%, “OL” if the range is exceeded) | |
Io *Range, Allowable input and Display Range are the same as Ior . | ||
Accuracy | ±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy | |
Iom *Range, Allowable input and Display Range are the same as Ior . | ||
Accuracy | ±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy | |
Measurement method |
Sampling speed 40.96ksps (every 24.4μs), gapless, calculate Trms values every 200ms. | |
Voltage | ||
Range | 1000.0V | |
Accuracy | ±0.2%rdg±0.2%f.s. * for waveforms of sine wave 40 - 70Hz | |
Allowable input | 10 - 1000V Trms, and 2000V peak | |
Display range | 0.9 - 1100.0V Trms (display “0” for less than 0.9V, “OL” if the range is exceeded) | |
Phase angle(θ) | ||
Display range | 0.0 - ±180.0° (regarding the phase of reference voltage as 0.0°) | |
Accuracy | Within ±0.5° for the inputs of 10% or higher of leakage current range, sine wave 40 - 70Hz, reference voltage of 90V Trms or higher. Within ±1.0° when using Ior leakage clamp sensor, and Within ±0.5°+ clamp sensor accuracy when using general purpose clamp sensor. |
|
Frequency meter range | 40 - 70Hz | |
External supply | AC100 - 240V(50/60Hz) 7.5VA max | |
Power source | LR6(AA)(1.5V) × 6 (Battery life approx. 11h) | |
Display / update period | 160 × 160dots, FSTN monochrome display / 500ms | |
PC card interface | SD card (2GB) *standard accessory | |
Communication interface |
USB | |
Temperature and humidity range |
23±5°C, relative humidity 85% or less(no condensation) | |
Operating temperature and humidity range |
-10 - 50°C, relative humidity 85% or less(no condensation) | |
Storage temperature and humidity range |
-20 - 60°C, relative humidity 85% or less(no condensation) | |
Applicable Standards | IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-030, IEC 61010-031, IEC 61326 |
|
Dimension | 165(L) × 115(W) × 57(D)mm | |
Weight | Approx. 680g (including batteries) | |

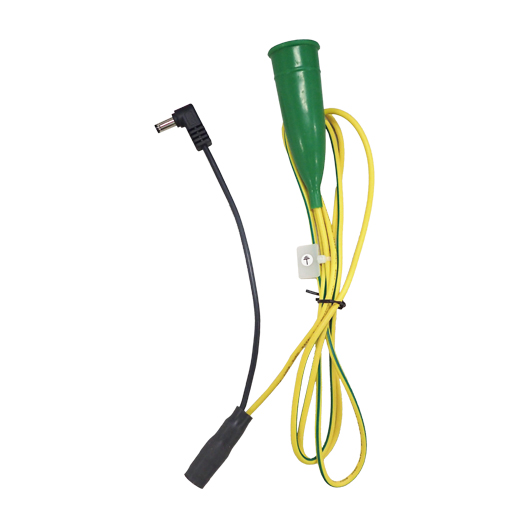

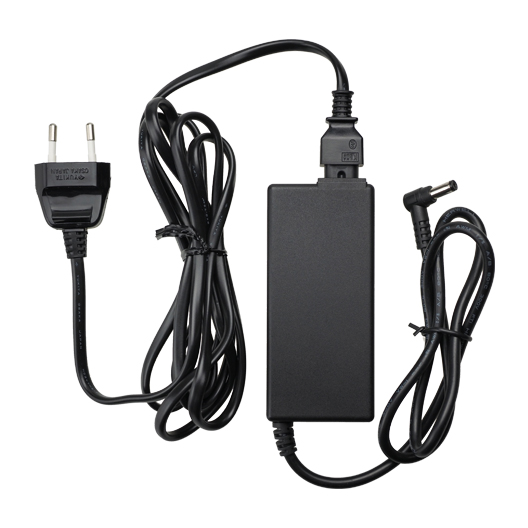

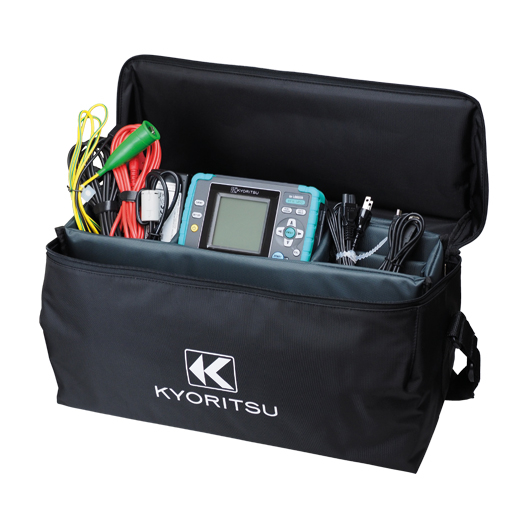

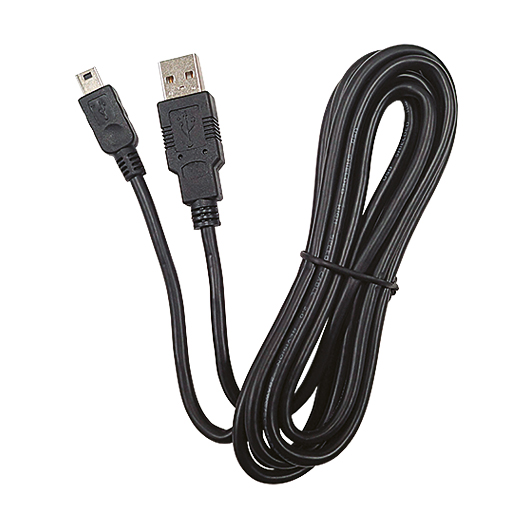

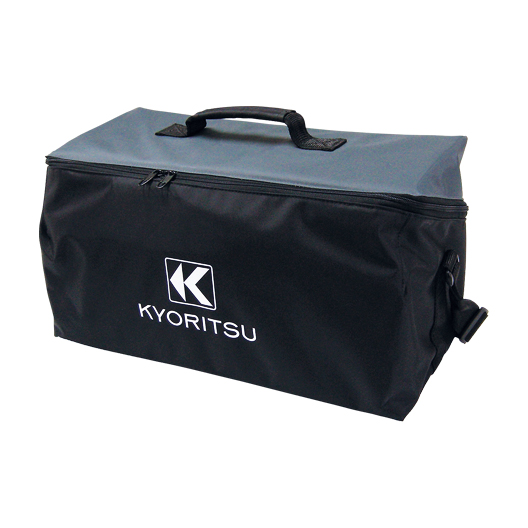

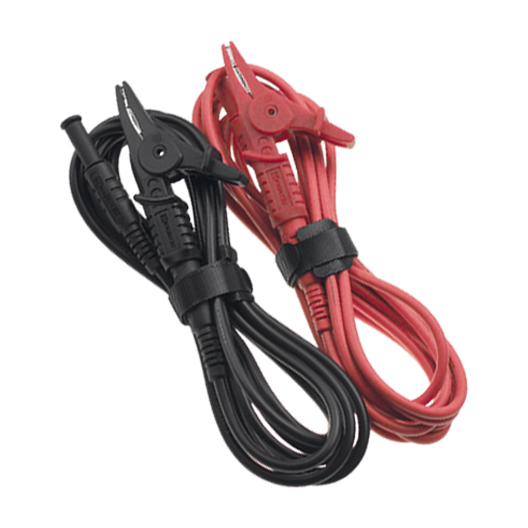

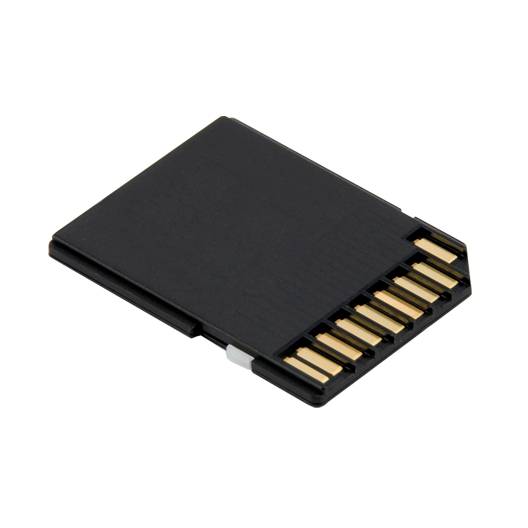

Accessories | 7273 (Voltage test lead) 8262 (AC adapter) 7278 (Earth cable) 7219 (USB cable) 8326-02 (SD card [2GB]) 9125 (Carrying case) Instruction manual, Cable marker, LR6(AA) × 6 |
|
Optional Accessories | 8177/8178 (Ior Leakage current Clamp Sensor) 8329 (Power supply adapter) 8121/8122/8123/8124/8125/8126/8127/8128 (Load current Clamp Sensor)* 8130/8133 (Flexible Clamp Sensor)* 8146/8147/8148 (Leakage & Load current clamp sensors)* |
Please download “KEW Windows for KEW 5050(software)” from here.
Shows insulation resistance (R) values determined by the following formula.
V: Reference voltage/ Ior: Leakage current
Displayed value is just for reference since the measurement method differs from insulation resistance testers and may not be consistent with each other.
* Cannot be used for Ior measurement.
Ior logger and clamp sensor set model
*Included accessories for below models are same with above-mentioned.
- KEW 5050-01
- 8178 (φ68mm) × 1
- KEW 5050-02
- 8177 (φ40mm) × 1
Optional Accessories
-
Ior LEALAGE CLAMP SENSOR

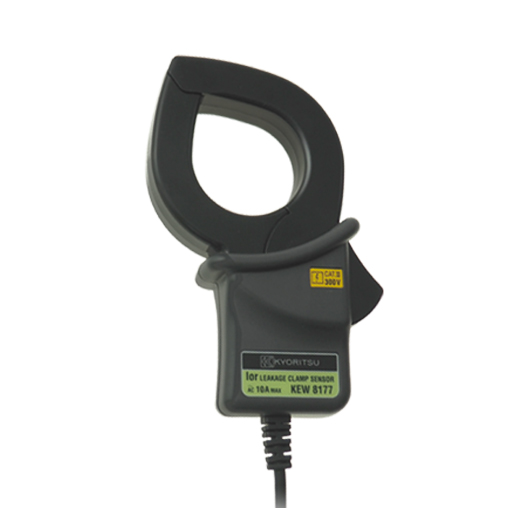

KEW 8177
-
Ior LEALAGE CLAMP SENSOR
KEW 8178
-

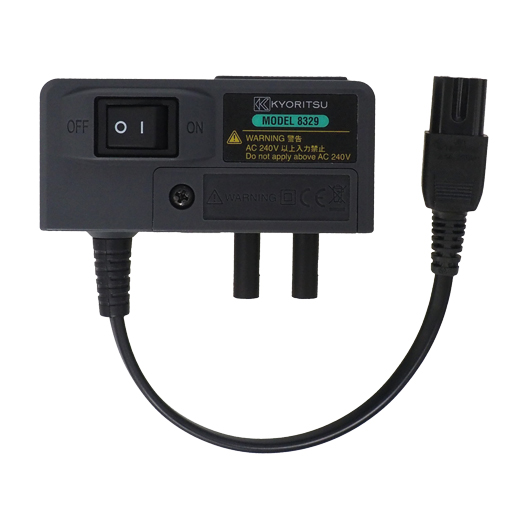

POWER SUPPLY ADAPTOR
MODEL 8329
-
LOAD CURRENT CLAMP SENSOR
KEW 8121
-
LOAD CURRENT CLAMP SENSOR
KEW 8122
-
LOAD CURRENT CLAMP SENSOR
KEW 8123
-
LOAD CURRENT CLAMP SENSOR
MODEL 8124
-
LOAD CURRENT CLAMP SENSOR
MODEL 8125
-
LOAD CURRENT CLAMP SENSOR
MODEL 8126
-
LOAD CURRENT CLAMP SENSOR
MODEL 8127
-
LOAD CURRENT CLAMP SENSOR
MODEL 8128
-
FLEXIBLE CLAMP SENSOR
KEW 8130
-
FLEXIBLE CLAMP SENSOR
KEW 8133
-
LEAKAGE & LOAD CURRENT CLAMP SENSOR
KEW 8146
-
LEAKAGE & LOAD CURRENT CLAMP SENSOR
KEW 8147
-
LEAKAGE & LOAD CURRENT CLAMP SENSOR
KEW 8148
