Load current clamp sensors

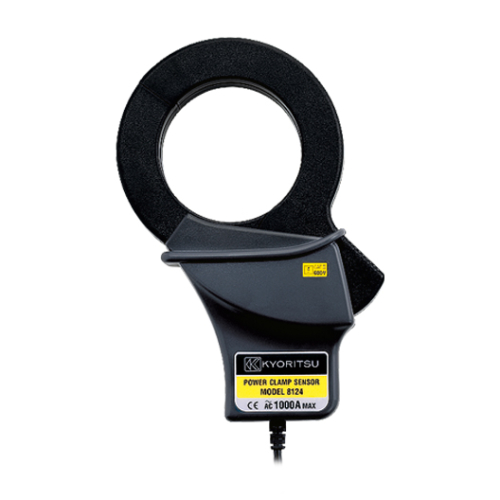

MODEL 8124

MODEL 8124
CE
Ø68mm
  • φ68
  • MAX1000A
Applicable model 501050205050(*), 63006305, 63106315

* Please check the "Applicable model list" before using the product.

Conductor size Ø68mm
Rated current AC 1000A
Output voltage AC 500mV/1000A (AC 0.5mV/A)
Accuracy ±0.5%rdg±0.2mV (50/60Hz)
±1.5%rdg±0.4mV (40Hz - 1kHz)
Phase shift within ±1.0º (45 - 65Hz)
Cable length Approx. 3m
Output connector MINI DIN 6pin
Output impedance Approx. 1Ω
Applicable standards IEC 61010-1, IEC 61010-2-032 CAT III 600V pollution degree 2, IEC 61326
Operating temperature & humidity range 0 - 50ºC, less than 85% RH (without condensation)
Dimensions 186(L) x 129(W) x 53(D) mm
Weight Approx. 510g
Included Accessories 9094 (Carrying case), Instruction manual, Cable marker
Optional Accessories 7146 (Banana Φ4 adjuster plug)
7185 (Extension Cable)
