Load current clamp sensors

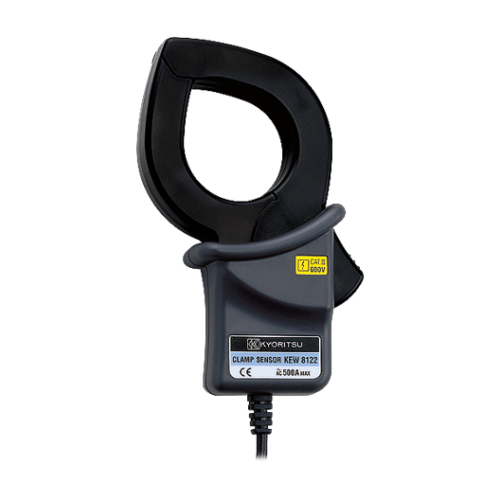

KEW 8122

KEW 8122
  • φ40
  • MAX500A
Applicable model 501050205050(*)

* Please check the "Applicable model list" before using the product.

Conductor size Ø40mm
Rated current AC 500A
Output voltage AC 500mV/500A (AC 1mV/A)
Accuracy ±2.0%rdg±0.3mV (50/60Hz)
±3.0%rdg±0.5mV (40Hz - 1kHz)
Cable length Approx. 2m
Output connector MINI DIN 6pin
Output impedance Approx. 1.9Ω
Applicable standards IEC 61010-1, IEC 61010-2-032 CAT III 600V pollution degree 2, IEC 61326
Operating temperature & humidity range 0 - 40ºC, less than 85% RH (without condensation)
Dimensions 128(L) x 81(W) x 36(D) mm
Weight Approx.260g
Included Accessories 9095 (Carrying case), Instruction manual, Cable marker
Optional Accessories 7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)
