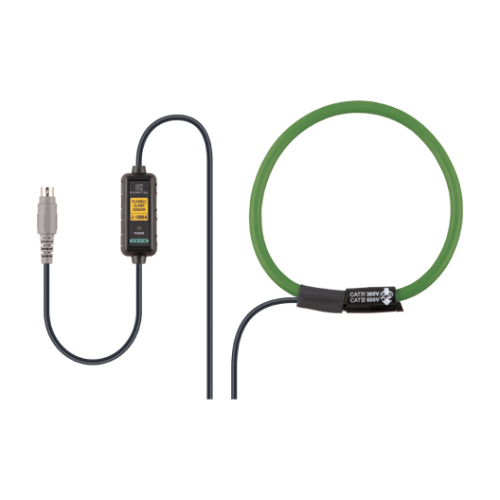

Flexible Clamp Sensor

KEW 8130

KEW 8130
CE
Ø110mm
• Can measure AC current up to 1000A
• Flexible and light weight by the air core coil used at the sensor part
• Designed to meet the international safety standard IEC 61010-1 CAT IV 300V, CAT III 600V
  • φ110
  • MAX1000A
Applicable model 5010(*), 5020(*), 5050(*), 63006305, 63106315

* Please check the "Applicable model list" before using the product.

Conductor size max.Ø110mm
Rated current AC 1000A
Output voltage AC 500mV / 1000A (AC 0.5mV/A)
Accuracy ±0.8%rdg±0.2mV (45Hz - 65Hz)
±1.5%rdg±0.4mV (40Hz - 1kHz)
Phase shift within ±2.0° (45Hz - 65Hz)
Cable length Approx. 3m
Output connector MINI DIN 6PIN
Output impedance 100Ω or less
Applicable standards IEC 61010-1, IEC 61010-2-030,
IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
IEC 61326
Operating temperature & humidity range -10 - 50°C, relative humidity 85% or less (no condensation)
Weight Approx. 180g
Included Accessories Instruction manual, Cable marker,
9095 (Carrying case)
