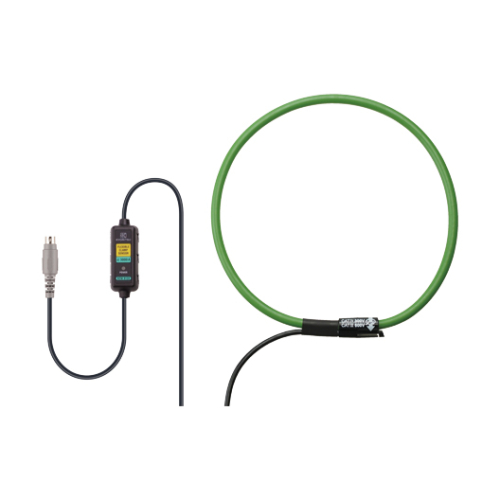

Flexible Clamp Sensor

KEW 8133

KEW 8133
• Can measure AC current up to 3000A
• Flexible and light weight by the air core coil used at the sensor part
• Designed to meet the international safety standard IEC 61010-1 CAT IV 300V, CAT III 600V
  • φ170
  • MAX3000A
Applicable model 5050(*), 6305, 6315

* Please check the "Applicable model list" before using the product.

Conductor size max.Ø170mm
Rated current AC 3000A
Output voltage AC 500mV / 3000A (AC 0.167mV/A)
Accuracy ±1.0%rdg±0.5mV (45Hz - 65Hz)
±1.5%rdg±0.5mV (40Hz - 1kHz)
Phase shift within ±2.0° (45Hz - 65Hz)
within ±3.0° (40Hz - 1kHz)
Cable length Approx. 3m
Output connector MINI DIN 6PIN
Output impedance 100Ω or less
Applicable standards IEC 61010-1,
IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
IEC 61326
Operating temperature & humidity range -10 - 50°C, relative humidity 85% or less (no condensation)
Weight Approx. 200g
Included Accessories Instruction manual, Cable marker,

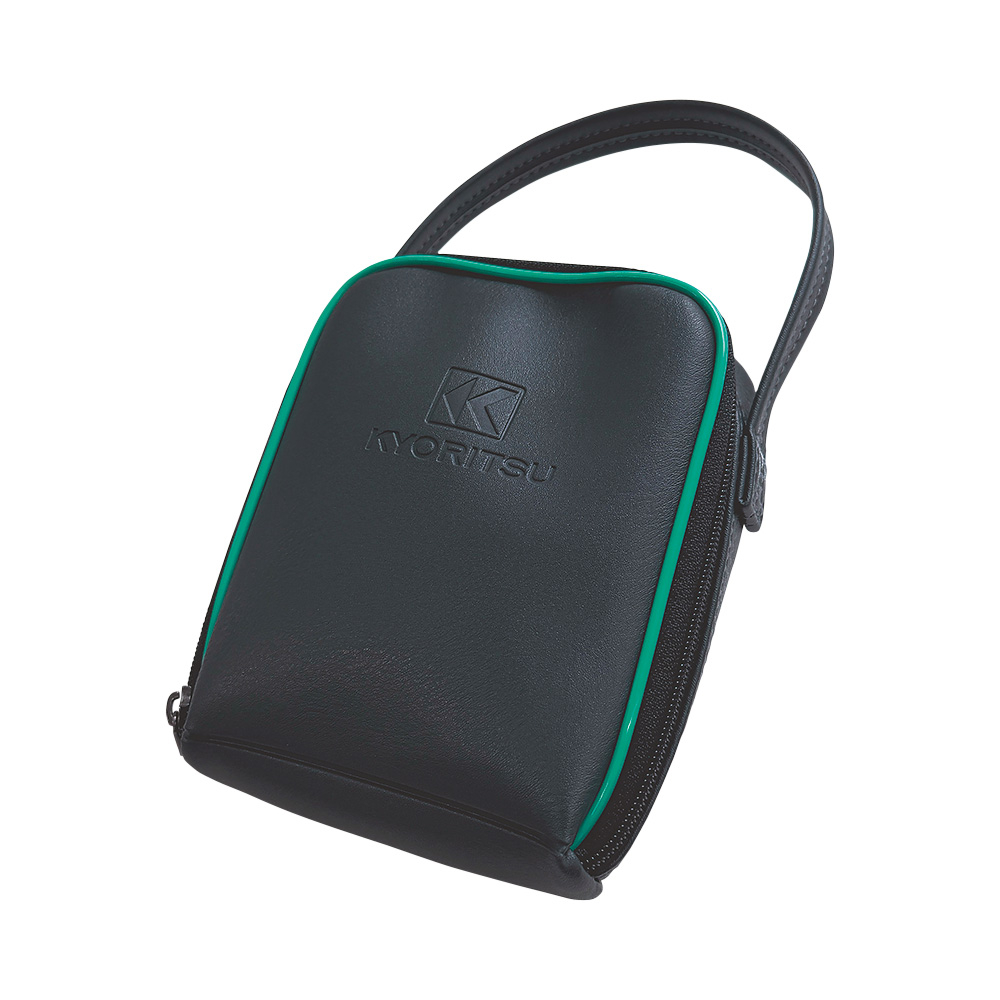

9095 (Carrying case)
