Load current clamp sensors

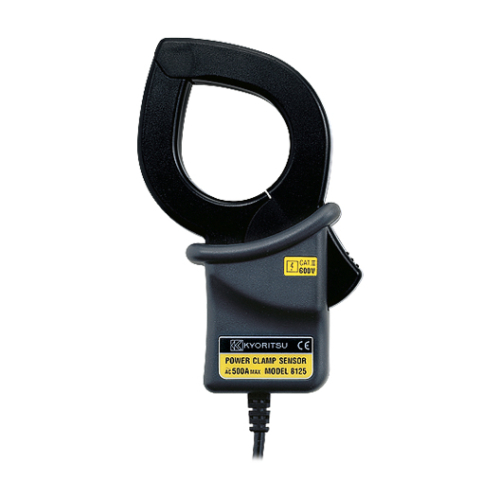

MODEL 8125

MODEL 8125
CE
Ø40mm
  • φ40
  • MAX500A
Applicable model 5010(*), 5020(*), 5050(*), 63006305, 63106315

* Please check the "Applicable model list" before using the product.

Conductor size Ø40mm
Rated current AC 500A
Output voltage AC 500mV/500A (AC 1mV/A)
Accuracy ±0.5%rdg±0.1mV (50/60Hz)
±1.0%rdg±0.2mV (40Hz - 1kHz)
Phase shift within ±1.0º (45 - 65Hz)
Cable length Approx. 3m
Output connector MINI DIN 6pin
Output impedance Approx. 2Ω
Applicable standards IEC 61010-1, IEC 61010-2-032:2002 CAT III 600V pollution degree 2, IEC 61326
Operating temperature & humidity range 0 - 50ºC, less than 85% RH (without condensation)
Dimensions 128(L) x 81(W) x 36(D) mm
Weight Approx. 260g
Included Accessories 9095 (Carrying case), Instruction manual, Cable marker
Optional Accessories 7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)
