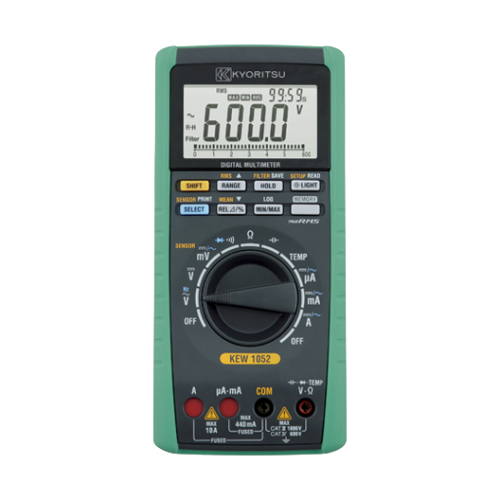

DIGITAL MULTIMETER

KEW 1052

High Accuracy, High Performance and Reliable Measurements

High Accuracy, High Performance and Reliable Measurements

  • 0.09% basic DC accuracy
  • Large display with 6,000 counts
  • True RMS Measurements
  • True RMS or MEAN value detection mode can be selected
  • Low-pass filter for motor drive measurements
  • User calibration function

Safety design for industrial use

  • Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -10 to 55ºC

Reliable support for data management

  • Large data internal memory 1,600 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface
    (Option for USB Communication set)
    *MAX 32,767 data can be transferred.

Specification

Detection mode MEAN/Ture RMS (switch)
DC V 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])
±0.09%rdg±2dgt (Basic accuracy)
AC V [Ture RMS] 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy)
AC V [MEAN] 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy)
DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.2%rdg±2dgt (Basic accuracy)
AC A [Ture RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.75%rdg±5dgt (Basic accuracy)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer 600.0Ω
(The buzzer turns on at resistances lower than 50±30Ω)
Diode test 2.000V
±1%rdg±2dgt
Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF
±2%rdg±5dgt (Basic accuracy)
Frequency 10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz
±0.02%rdg±1dgt (Basic accuracy)
Temperature -50 - 600ºC
±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *
Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6 (1.5V)×4
(Auto power off: Approx. 20 minutes)
Dimension 192(L)×90(W)×49(D) mm
Weight Approx. 560g (including batteries)
Accessories

7220A (Test leads)
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included)
R6×4
Instruction manual
Optional accessories

7234 (Alligator clip)
8241 (USB Communication set)
8115 (AC/DC Clamp Sensor)
8121 (Load current Clamp Sensor)
8122 (Load current Clamp Sensor)
8123 (Load current Clamp Sensor)
8146 (Leakage & Load current Clamp Sensor)
8147 (Leakage & Load current Clamp Sensor)
8148 (Leakage & Load current Clamp Sensor)
7146 (Banana Ø4 adjuster plug)
8405 (Temperature probe)
8406 (Temperature probe)
8407 (Temperature probe)
8408 (Temperature probe)
9154 (Carring case)

Please download “DMM Application(software)” from here.
