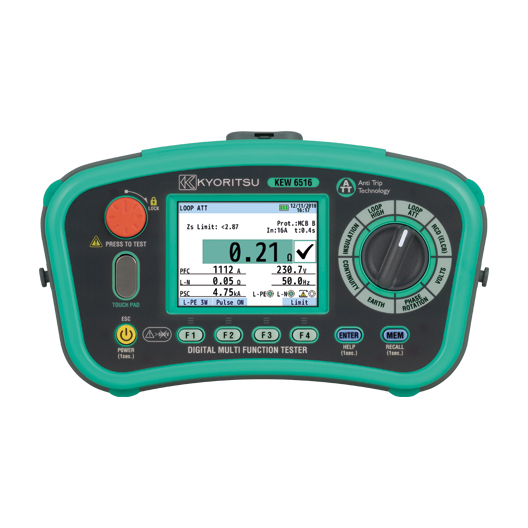

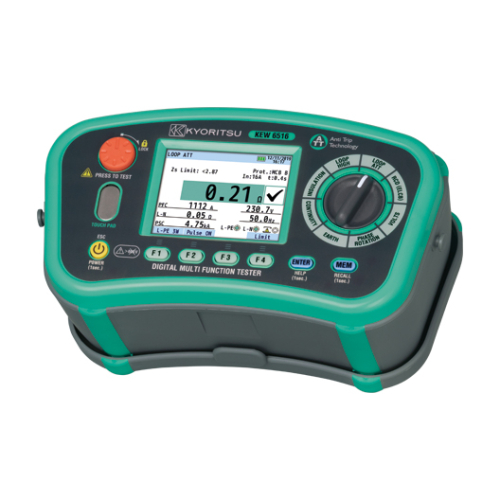

MULTI FUNCTION INSTALLATION TESTER
A lot of Testing Power in the hands of Electrical Installation Professionals!
- DISPLAY
Color LCD 3.5 inches dot matrix. - ATT
Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines). - LOOP
・High test current range of 2Ω with 0.001Ω resolution.
・Zs Limit compares the values required by Electrical Installations Standard with measured results. - RCD
・Type AC, A, F, B(General & Selective), EV and Variable RCDs.
・Single and Auto test, Ramp test and Contact voltage. - EARTH
Earth resistance test 2 and 3 wires with all accessories included. - INSULATION
Resistance test 100, 250, 500 & 1000V with auto discharge voltage. - CONTINUITY
Continuity test at 200mA or 15mA with selectable buzzer for fast judgment. - PHASE ROTATION
On 3-phase lines with clear indication of the sequence on the display. - VOLTS
TRMS Voltage measurements 2-600V, Mains Frequency. - HELP
Display shows how to connect the instrument according to the function selected. - SPD
Surge Protection Device test, for SPD that uses varistor. - PAT
Portable Appliance Tester function, for Insulation and Protective conductor resistance test - SAFETY
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.
3D View
Video
PR
How to use
Product Overview
Large LCD & HELP function
- All the test data is shown in one large colored screen.
- HELP function will show how to connect the instrument according to the function selected
Operation in 3 simple steps & Hands free testing
- Set the rotary dial to your testing range.
- Connect the instrument to the installation under test.
- Press the test button.(By remote probe or using the Lockdown function of the test button.)
Anti-Trip Technology (with 2 & 3 wire)
For no trip LOOP L-PE testing on all RCDs.
With 3 wire (L, N, PE), to get the best accuracy readings.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).
Loop Impedance 0.001 resolution
High test current range of 2Ω with 0.001Ω resolution.
Zs/Ra Limit
Zs Limit compares the values required by Electrical Installations Standard with measured results.
The verification of safety requirement on an electrical installation is simplified by using Zs/Ra Limit function. This function will automatically check if the measured loop impedance for TN (or earth loop for TT) is low enough to trip (disconnect) the MCB / Fuse / RCD giving the result of PASS or FAIL on the display.
SPD test
SPD (Surge Protection Device) which contains varistor can be tested measuring the tripping voltage without damage it.
PAT test
PAT test (PAT = Portable Appliance Tester) It is possible to check the insulation resistance and earth bond continuity of portable appliances for class I and II.
Connectivity
Use the PC application KEW Report to inprove work efficiency.
KEW 6516 can download the test data by connecting the USB adaptor (Model 8212-USB) and then print complete Test Reports by a PC.
Specification
Insulation resistance | SPD (Varistor) |
||||||
---|---|---|---|---|---|---|---|
Test voltage | 100V | 250V | 500V | 1000V | Max.1000V | ||
Measuring ranges | 2.000/20.00/200.0MΩ (Auto-ranging) |
20.00/200.0/ 1000MΩ (Auto-ranging) |
20.00/200.0/ 2000MΩ (Auto-ranging) |
0-1049V (goes up by 1V) |
|||
Accuracy | ±2%rdg±6dgt (2.000/20.00MΩ) ±5%rdg±6dgt (200.0MΩ) |
±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (1000MΩ) |
±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (2000MΩ) |
±5%rdg±5dgt | |||
Rated current | 1.0-1.2mA @0.1MΩ |
1.0-1.2mA @0.25MΩ |
1.0-1.2mA @0.5MΩ |
1.0-1.2mA @1MΩ |
‐ | ||
Output short circuit current | 1.5mA max | ‐ | |||||
Loop impedance | |||||||
Function | LOOP ATT | LOOP HIGH | |||||
L-PE/L-N (3wire) |
L-PE (2wire) |
L-PE (0.01ΩRes) |
L-PE (0.001ΩRes) High test current (25A) |
L-N/L-L | |||
Rated voltage | 100-260V (50/60Hz) |
48-260V (50/60Hz) |
48-260V (50/60Hz) |
100-260V (50/60Hz) |
48-500V (50/60Hz) |
||
Impedance range | 20.00/200.0/2000Ω (Auto-ranging) |
20.00/200.0/2000Ω (Auto-ranging) |
2.000Ω | 20.00Ω | |||
Accuracy | ±3%rdg±6dgt | ±3%rdg±10dgt | ±3%rdg±4dgt | ±3%rdg±25mΩ | ±3%rdg±4dgt | ||
Nominal test current at 0Ω external loop: Magnitude/ Duration at 230V |
L-N:6A/60ms N-PE:10mA |
L-PE:15mA | 20Ω: 6A/20ms 200Ω: 0.5A/20ms 2000Ω: 15mA/500ms |
25A/20ms | 6A/20ms | ||
PSC/PFC | |||||||
Range | 2000A/20kA (L-N(PSC)/L-PE(PFC)) |
2000A/20kA (PFC) |
2000A/20kA (PFC) |
2000A/50kA (PFC) |
2000A/20kA (PSC) |
||
Accuracy | PSC/PFC accuracy is derived from measured loop impedance specification and measured voltage specification | ||||||
RCD | |||||||
Rated voltage | 100-260V(50/60Hz) | ||||||
Function | x1/2, x1,x5,Ramp,Auto,Uc | ||||||
6/10/30/100/300/500/1000mA/variable | |||||||
RCD type | AC(G/S) | A(G/S) | F(G/S) | B(G/S) | EV | ||
Trip current setting |
x1/2, x1,Uc |
10/30/100/300/ 500/1000mA(G) 10/30/100/ 300/500(S) |
10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300mA |
6mA (x1 only) |
|
x5 | 10/30/100mA | 10/30/100mA | 10/30/100mA | 10/30mA | - | ||
Ramp | 10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300mA |
6mA | ||
Accuracy | Trip current |
x1/2 | -8 - -2% | -10 - 0% | -10 - 0% | -10 - 0% | - |
x1 | +2 - +8% | 0 - +10% | 0 - +10% | 0 - +10% | 0 - +10% | ||
x5 | +2 - +8% | 0 - +10% | 0 - +10% | 0 - +10% | - | ||
Ramp | -4 - +4% | -10 - +10% | -10 - +10% | -10 - +10% | -10 - +10% | ||
Trip time |
x1/2 | 2000ms(G/S):±1%rdg±2ms | - | ||||
x1 | 550ms(G):±1%rdg±2ms,1000ms(S):±1%rdg±2ms | 10.5s:±1%±2㎳ | |||||
x5 | 410ms(G/S):±1%rdg±2ms | - | |||||
Continuity | |||||||
Range | 20.00/200.0/2000Ω (Auto-ranging) | ||||||
Open circuit voltage(DC) | 7-14V | ||||||
Measuring current |
200mA | 200mA or more(2Ω or less) | |||||
15mA | 15mA±3mA(short-circuit) | ||||||
Accuracy | ±2%rdg±8dgt | ||||||
Volts | |||||||
Range | 300.0/600V(Auto-ranging) | ||||||
Measuring ranges |
Volts | 2-600V | |||||
Frequency | 45-65Hz | ||||||
Accuracy | Volts | ±2%rdg±4dgt | |||||
Frequency | ±0.5%rdg±2dgt | ||||||
Phase Rotation | |||||||
Rated voltage | 48-600V(45-65Hz) | ||||||
Remarks | Remarks Correct phase sequence: are displayed “1.2.3” and mark Reversed phase sequence: are displayed “3.2.1” and mark |
||||||
Earth | |||||||
Range | 20.00/200.0/2000Ω(Auto-ranging) | ||||||
Accuracy | ±2%rdg±0.08Ω(20.00Ω) ±2%rdg±3dgt(200.0/2000Ω) |
||||||
General | |||||||
Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600 V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10 IEC 60529(IP40), IEC 61326(EMC) |
||||||
Power source | LR6 (AA) (1.5V) ×8 | ||||||
Communication interface | USB | ||||||
Dimension / Weight | 136(L) × 235(W) × 114(D) mm / 1350g (including batteries) | ||||||
Accessories | Mains test lead※1 7281 (Test leads with remote control switch) 7246 (Distribution board test lead) 7228A (Earth resistance test leads) 8041 (Auxiliary earth spikes[2 spikes/1 set]) 9084 (Soft case) 9142 (Carrying case) 9151 (Shoulder strap) 9199 (Shoulder pad) 8212-USB (USB adapter) LR6(AA) × 8 Instruction manual Calibration certificate |
||||||
Optional Accessories | 8259 (Adapter for measurement terminal) 7272 (Precision measurement cord set) 8017A (Extension prod long) 8602 (EVSE ADAPETER) |
Please download “KEW Report(software)” from here.
※1 7187A:British plug, 7218A:(EU)European SCHUKO plug, 7221A:(SA)South african plug, 7222A:(AU)Australian plug
MULTI FUNCTION TESTER and EVSE ADAPTER Kits
Kits available for testing EVSE with KEW 6516 series.
