KEW 8602

EVSE ADAPTER

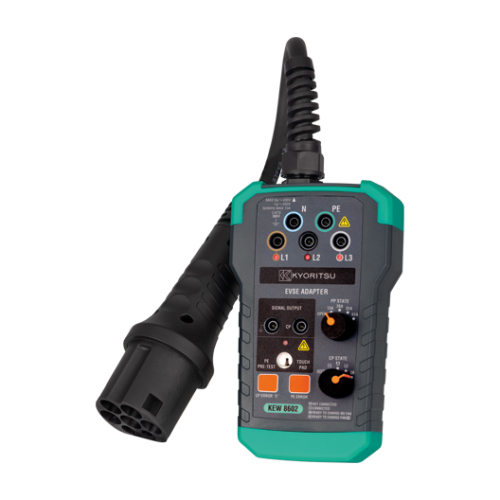

KEW 8602

Dedicated adapter for EVSE
(Electric Vehicle Supply Equipment)
installation inspections, maintenance and troubleshooting

Compact adapter for complete testing of Mode 3 AC EVSE
• EVSE tests under various simulations
• Touch pad for PE voltage check
• CP signal terminals for CP signal monitoring
*Supporting normal chargers (AC) only, not supporting fast (DC) chargers

PR

How to use

Measurable tests by KEW 8602

CP state	A, B, C, D
PP state	OPEN, 13A, 20A, 32A, 63A
Terminal	E, N, L1, L2, L3, CP
PE PRE-TEST	✓
CP Error	✓
PE Error	✓
Mains socket	10/250V

Specification

Plug	IEC 62196-2 Type 2
Rated voltage	AC 250V Max.(Single-phase) AC 430V Max.(Three-phase)
Rated Frequency	50/60Hz
Rated voltage/ current of mains socket	AC 10A/250V ※8602(EU):Type E socket 　8602(UK):Type BF socket 　8602(AU):Type O socket
Fuse rating	AC 10A/250V, Ø5×20mm
Operating temperature and humidity range	0 - 40ºC, relative humidity 80 % or less (no condensation)
Storage temperature and humidity range	-10 - 50ºC, relative humidity 80 % or less (no condensation)
Applicable standards	IEC 61010-1 CAT Ⅱ 300V, IEC 61010-2-030, IEC 61851-1, IEC 60529 (IP40)
Altitude	2000m or less
Cable length	Approx. 250mm
Dimension	Unit: 172(L) x 105(W) x 57(D) mm Plug part: 175(L) x 60(W) x 53(D) mm
Weight	Approx. 840g
Accessories	8930(Fuse[10A/250V]) 9202 (Carrying case) Instruction manual
Optional Accessories	8603 (TYPE1 to TYPE2 conversion adapter)
