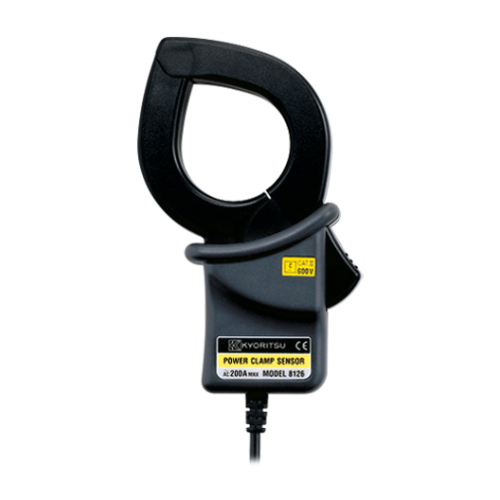

LOAD CURRENT CLAMP SENSOR

MODEL 8126

Ø40mm

Ø40mm

  • 交流電流測定

Product Overview

Applicable model 5010(*), 5020(*), 5050(*), 63006305, 63106315

* Please check the "Applicable model list" before using the product.

Specification

Conductor size Ø40mm
Rated current AC 200A
Output voltage AC 500mV/200A (AC 2.5mV/A)
Accuracy ±0.5%rdg±0.1mV (50/60Hz)
±1.0%rdg±0.2mV (40Hz - 1kHz)
Phase shift within ±1.0º (45 - 65Hz)
Cable length Approx. 3m
Output connector MINI DIN 6PIN
Output impedance Approx. 5Ω
Applicable standards IEC 61010-1 , IEC 61010-2-032:2002 CAT III 600V pollution degree 2 , IEC 61326
Operating temperature and humidity range 0 - 50˚C , relative humidity 85% or less (no condensation)
Dimension 128(L) x 81(W) x 36(D) mm
Weight Approx. 260g
Accessories 9095 (Carrying case)
Instruction manual , Cable marker
Optional Accessories 7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)
