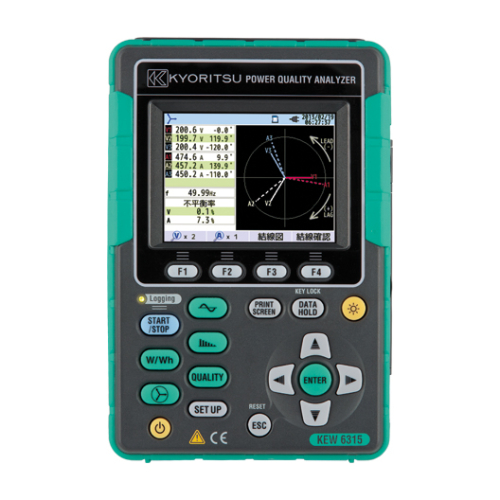

POWER QUALITY ANALYZER

KEW 6315

Simultaneous Power & Power quality measurements

  • Simultaneous Power & Power quality measurements
  • Helpful support functions
  • Measurement with high accuracy
  • Remote monitoring on PC and Android device
  • Various Clamp Current Sensors
  • Energy consumption check on site
  • IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

3D View

Video

Product Overview

  • Simultaneous Power & Power quality measurements
    Power/Harmonics/Waveform/Power quality are recorded at all CHs
    (Voltage:3ch,Current 4ch)
  • Helpful support functions
    Quick Start Guide,Wiring check and Sensor detection for easy and reliable measurement
  • Measurement with high accuracy
    Guaranteed accuracy: ±0.3%rdg(energy),
               ±0.2%rdg(voltage/current)
    Complies with the International Standard
    IEC 61000-4-30 Class S and the European Standard EN50160
  • Energy consumption check on site
    Trend and demand graphs for easy recognition
  • TFT color display with high resolution
  • IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V

KEW Smart 6315

Free Android software "KEW smart 6315" is available on "Google Play Store"
Please search "KEW Smart" in Google Play Store.
Communication charge may be incurred separately to download application.

Get it on Google Play

  • Supporting Android Ver. 8 to 15
  • WVGA (800 × 480) resolution or higher

Specification

Power Quality Analyzer

Wiring connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power,Active energy, Reactive energy, Apparent energy, Power factor (cos θ),
Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate),
Capacitance calculation for PF correction unit, Flicker
Voltage (RMS)
Range 600.0 / 1000V
Accuracy 600.0V Range : (sine wave 40 - 70Hz)
 10% - 150% against 100V or more of nominal V : Nominal V±0.5%
 Out of above range : ±0.2%rdg±0.2%f.s.
1000V Range : ±0.2%rdg±0.2%f.s.(sine wave 40 - 70Hz)
Allowable input 1 - 120% of each range (rms). 200% of each range (peak)
Display range 0.15 - 130% of each range
Crest factor 3 or less
Sampling speed of Voltage transient 24µs
Current (RMS)
Range 8128/8135 ( 50A type ) : 5000mA / 50.00A / AUTO
8127 ( 100A type ) : 10.00 / 100.0A / AUTO
8126 ( 200A type ) : 20.00 / 200.0A / AUTO
8125 ( 500A type ) : 50.00 / 500.0A / AUTO
8124/8130 ( 1000A type ) : 100.0 / 1000A / AUTO
8146/8147/8148 ( 10A type ) : 1000mA / 10.00A / AUTO
8133 ( 3000A type ) : 300.0 / 3000A / auto
Accuracy ±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 - 70Hz)
Allowable input 1 - 110% of each range (rms). 200% of each range (peak)
Display range 0.15 - 130% of each range
Crest factor 3 or less
Active power
Accuracy ±0.3%rdg±0.2%f.s. + accuracy of clamp sensor
(power factor 1, sine wave, 40 - 70Hz)
Influence of power factor ±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range 40 - 70Hz
Power supply (AC Line) AC100 - 240V / 50 - 60Hz / 7VA max
Power supply (DC battery) Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
Battery life approx. 3h (LR6, Backlight OFF)
Internal memory FLASH memory (4MB)
PC card interface SD card (2GB)
Communication interface USB, Bluetooth® 5.0
Display 320 × 240 (RGB) Pixel, 3.5inch color TFT display
Display update period 1 sec
Applicable standards IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V Pollution degree 2, IEC 61010-2-030, IEC 61010-031,
IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
Temperature and humidity range 23±5ºC, less than 85% RH (without condensation)
Operating temperature and humidity range 0 - +45ºC, less than 85% RH (without condensation)
Storage temperature and humidity range -20 - +60ºC, less than 85% RH (without condensation)
Power supply (AC Line) AC100 - 240V / 50 - 60Hz / 7VA max
Power supply (DC battery) Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
Battery life approx. 3h (LR6, Backlight OFF)
Dimension 175(L) × 120(W) × 68(D) mm
Weight Approx. 900g
Accessories 7141B (Voltage test lead set)
7170(Power cord[EU]) or 7240(Power cord[UK])
7219 (USB cable)
8326-02 (SD card [2GB])
9125 (Carrying case)
Input terminal plate × 6,  Quick manual, LR6× 6
Optional Accessories 8124/8125/8126/8127/8128 (Load current Clamp Sensor)
8130/8133(*)/8135(*) (Flexible clamp sensor)
8146/8147/8148 (Leakage and Load current clamp sensor)
8312 (Power supply adapter)
9132 (Magnetic carrying case)

Please download “KEW Windows for KEW 6315(software)” from here.

* The KEW 6315 can be used with firmware versions V1.50 or later for the KEW 8133 and V3.00 or later for the KEW 8135.
   Please check here for the latest firmware.

Set Model

*Included accessories for below models are same with above-mentioned.

  • KEW 6315-01
    • 8125 (500Aφ40mm) × 3
    • Carrying case: 9125
  • KEW 6315-03
    • 8130 (1000A : φ110mm) × 3
    • Carrying case: 9135
  • KEW 6315-04
    • 8130 (1000A : φ110mm) × 4
    • Carrying case: 9135
  • KEW 6315-05
    • 8133 (3000A : φ170mm) × 3
    • Carrying case: 9135
