- MODEL 6015
MULTI FUNCTION TESTER
MODEL 6015
Discontinued products

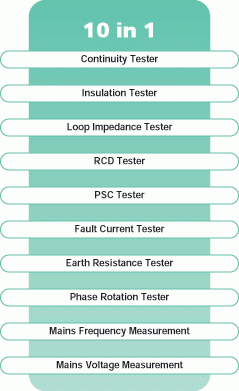

The top of the range KEW6015 can perform TEN separate test functions and provides all the test functions generally required to verify the safety of electrical installations in full compliance with IEC 61557.The KEW6015 can store test results in its on-board memory for later downloading to a computer or printer.
Data can be downloaded via the infra Red Communication Port (IRDA Port).
The KEW6015 is software driven and guides the user through the test functions required making the instrument very easy to use.
It's numerous features include the ability to conduct 3 or 4 wire earth resistance test,
D-Lok technology to prevent tripping of most passive type RCD's when loop testing and mains voltage and frequency measurement.
• Live circuit and wiring connection check LED’s
• D-Lok technology on loop test range
• On-board memory to store test results
• Downloading of data via IRDA port
• Auto power off
• Back light display
• Polarity switch
• Continuity Auto-null
• Auto ramp and auto test on RCD ranges
• Test of a large kind of RCD's: Standard, Selective, AC and A
(DC sensitive breakers)
• Designed to IP54 Rating
• Complies with IEC 61557
| Continuity Testing | |
|---|---|
| Measuring Ranges | 20/200/2000Ω Autoranging |
| Open Circuit Voltage | >6V |
| Short Circuit Current | >200mA DC |
| Accuracy | ±(1.5%rdg+3dgt) |
| Loop Impedance Testing | |
| Rated Voltage | 230V AC ±10% [50Hz] |
| Voltage Measuring Range | 100 - 400V AC [50Hz] |
| Impedance Ranges | 20/200/2000Ω |
| Nominal Test Current | 25A (20Ω range) 1.2A (200Ω range) 1.2A (2000Ω range) |
| Test Period | 1/2 cycle (10ms) |
| Base Accuracy | 20Ω range ±(2%rdg+2dgt) D-LOK OFF ±(5%rdg+5dgt) D-LOK ON |
| RCD Testing | |
| Rated Voltage | 230V AC ±10% [50Hz] |
| Trip Current Settings | RCD × 1/2 : 10,30,100,300,500,1000mA RCD × 1 : 10,30,100,300,500,1000mA RCD × 5 : 10,30,100mA |
| Trip Current Duration | RCD × 1/2 × 1: 2000ms RCD × 5: 200ms fast trip 50ms |
| Accuracy | Trip current +10%-0% of test current at 230V Trip time±(2%rdg + 3dgt) |
| Insulation Testing | |
| Measuring Ranges | 20/200/2000MΩ Autoranging |
| Test Voltage | 250V, 500Vand 1000V DC |
| Output Voltage on Open Circuit |
250V+20%-0% 500V+20%-0% 1000V+20%-0% |
| Rated Current | >1mA |
| Accuracy | 0 - 100MΩ ±(2%rdg+3dgt) 100MΩ - 2000MΩ ±(5%rdg+4dgt) |
| PSC Testing | |
| Rated Voltage | 230V AC ±10% [50Hz] |
| PSC Ranges | 2000A and 20kA |
| Accuracy | PSC accuracy derived from measured loop impedance specification and measured voltage specification |
| Fault Current | |
| Rated Voltage | 230V AC ±10% [50Hz] |
| Fault Current Ranges | 2000A and 20kA |
| Nominal Test Current | 1.2A (2000A) 25A (20kA) |
| Accuracy | Fault Current accuracy derived from measured loop impedance specification and measured voltage specification |
| Earth Resistance | |
| Ranges | 20Ω/200Ω/2000Ω |
| Output Voltage | 50V peak to peak square wave |
| Frequency | 720Hz ±5% |
| Accuracy | 20Ω ±(2%rdg+5dgt) |
| 200/2000Ω ±(2%rdg+3dgt) | |
| General | |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | 8 × 1.5V R6 or LR6 |
| Dimensions | 105(L) × 210(W) × 240(D)mm |
| Weight | 1924g approx. |
| Accessories | 7098 (Distribution board test leads for Loop/PSC/RCD testing ) 7099 (Moulded plug test leads(1 set) for Loop and RCD testing at sockets(EU plug) )* 7025 (Lead for insulation and continuity testing) 7109 (Earth resistance test leads (1 set)) KSLP5 (external earth probe) 8032 (auxiliary earth spikes) 8210 (IrDA Adaptor) Durable Holdall Accessory pouch Battery 8 × 1.5V R6 or LR6 Instruction Manual |
*7112 (Moulded plug test leads (1set) for Loop and RCD testing at sockets (UK plug) )
7113 (Moulded plug test leads (1set) for Loop and RCD testing at sockets (AU plug) )
7114 (Moulded plug test leads (1set) for Loop and RCD testing at sockets (SA plug) )
