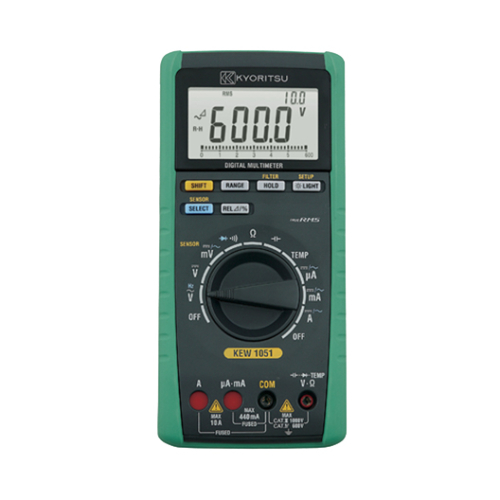

DIGITAL MULTIMETER

KEW 1051

High Accuracy, High Performance and Reliable Measurements

High Accuracy, High Performance and Reliable Measurements

  • 0.09% basic DC accuracy
  • Large display with 6,000 counts
  • True RMS Measurements
  • Low-pass filter for motor drive measurements
  • User calibration function

Safety design for industrial use

  • Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -10 to 55ºC

Specification

Detection mode Ture RMS
DC V 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])
±0.09%rdg±2dgt (Basic accuracy)
AC V 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy)
DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.2%rdg±2dgt (Basic accuracy)
AC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.75%rdg±5dgt (Basic accuracy)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer 600.0Ω (The buzzer turns on at resistances lower than 50±30Ω)
Diode test 2.000V
±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF
±2%rdg±5dgt (Basic accuracy)
Frequency 10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz
±0.02%rdg±1dgt (Basic accuracy)
Temperature -50 - 600ºC ±2%rdg±2ºC
(with the use of K-type Temperature probe)
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H)
Zero Adjustment (Capacitor, Resistance), LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2
IEC 61010-031, IEC 61326-1 (EMC)
Display 6,000 counts
Power source R6 (1.5V)×4
(Auto power off: Approx. 20 minutes)
Dimension 192(L)×90(W)×49(D) mm
Weight Approx. 560g (including batteries)
Accessories

7220A (Test leads)

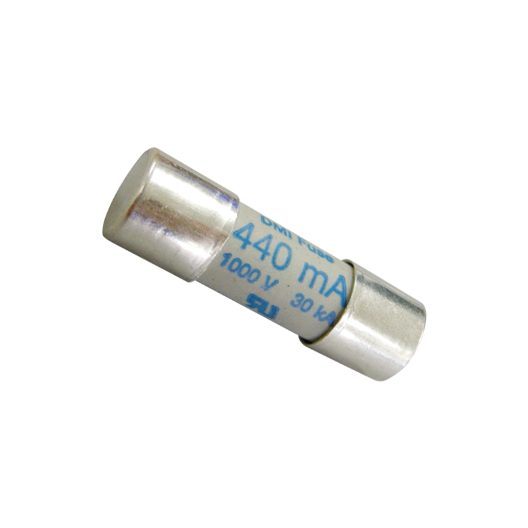

8926 (Fuse [440mA/1000V])×1 (included)

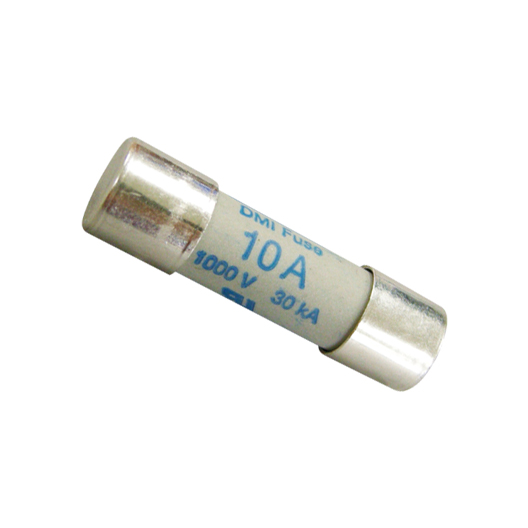

8927 (Fuse [10A/1000V])×1 (included)
R6×4
Instruction manual
Optional accessories

7234 (Alligator clip)
8115 (AC/DC Clamp Sensor)
8121 (Load current Clamp Sensor)
8122 (Load current Clamp Sensor)
8123 (Load current Clamp Sensor)
8146 (Leakage & Load current Clamp Sensor)
8147 (Leakage & Load current Clamp Sensor)
8148 (Leakage & Load current Clamp Sensor)
7146 (Banana Ø4 adjuster plug)

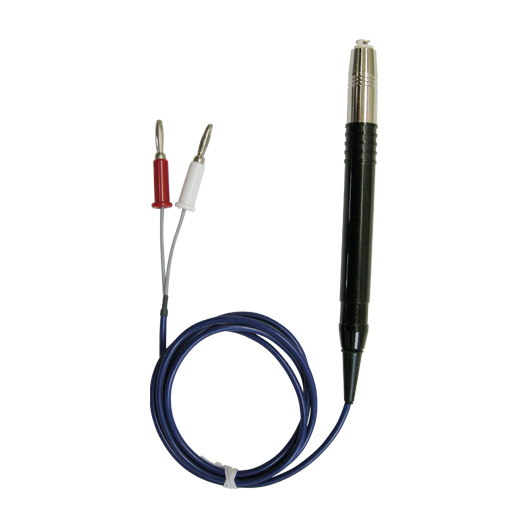

8405 (Temperature probe)
8406 (Temperature probe)
8407 (Temperature probe)
8408 (Temperature probe)

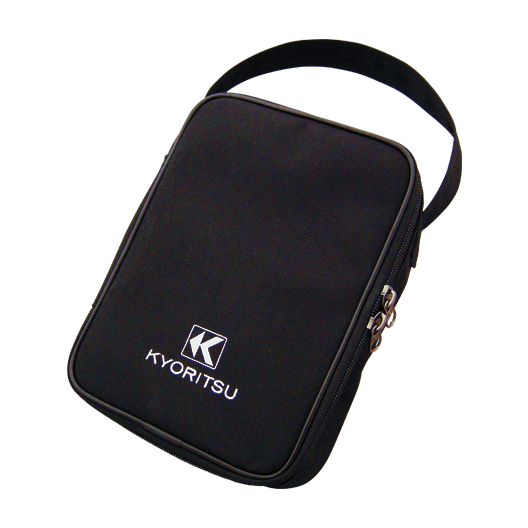

9154 (Carring case)
