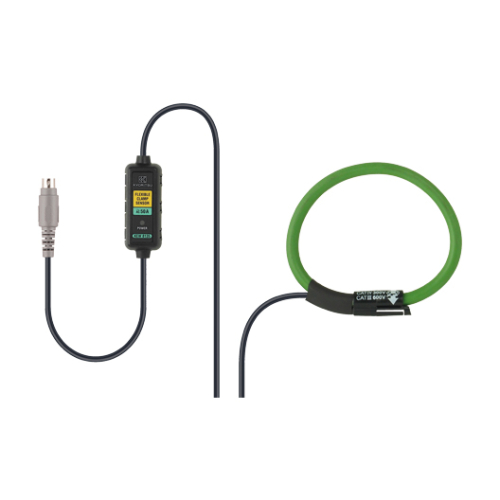

Flexible Clamp Sensor

KEW 8135

NEW
KEW 8135
CE
Flexible Clamp Sensor that is very useful for measuring low current around 5A
・Conductor size max.φ75mm
・Can measure AC current up to 50A
・Flexible and light weight by the air core coil used at the sensor part
・Designed to meet the international safety standard IEC 61010-1
   CAT IV 300V, CAT III 600V
  • Φ75
  • 5A MAX50A
  • ACA
Applicable model 501050206305(*), 6315(*)

* Please check the "Applicable model list" before using the product.

Conductor size φ75 mm (max)
Rated current AC 50A
Output voltage AC 500mV/ AC 50A (10mV/A )
Accuracy ±1.0%rdg±0.5mV (45 – 65Hz) (0 – 50A)
±1.5%rdg±0.5mV (40 – 300Hz) (0 – 20A)
±1.5%rdg±0.5mV (300Hz – 1kHz) (0 – 5A)
Phase shift within ±3.0° (45 – 65Hz)
within ±4.0° (40Hz – 1kHz)
Cable length Approx. 3m
Output connector MINI DIN 6PIN
Output impedance 100Ω or less
Applicable standards IEC 61010-1, IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
IEC 61326
Operating temperature & humidity range -10 to 50°C, Relative humidity 85% or less (no condensation)
Dimensions 65(L)×24(W)×22(D)mm
Weight Approx. 170 g
Included Accessories 9095 (Carrying case)
Instruction manual
Cable marker
