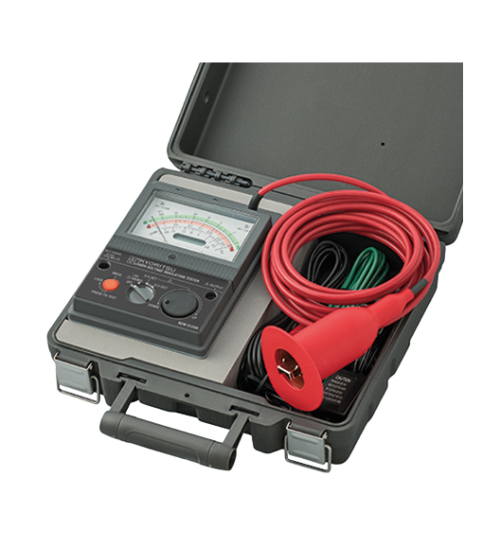

HIGH VOLTAGE INSULATION TESTER
Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1kV to 10kV
- Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1kV to 10kV
- DC voltage output for recorders
- Output voltage is shown on the digital display
- After tests, automatically discharges the charges stored in the circuit under test
- Operates with Ni-MH rechargeable batteries
Specification
| Test voltage | (variable) 1-10kV | 1000V |
|---|---|---|
| Measuring ranges (Automatic change) |
1.6/100GΩ (Auto-ranging) | 100MΩ |
| Measurement accuracy | 0.05-50GΩ | 1-100MΩ |
| ±10% rdg | ||
| Other ranges accuracy | ±1% of scale length*1 | ±1% of scale length |
| Open circuit voltage | ±2% | ±10% |
| Output voltage and set voltage indicate |
DC 0-10kV ±2%rdg±2dgt | |
| Power source | Ni-MH (1.2V) ×8 / External supply DC 15V | |
| Dimension | 200(L) × 140(W) × 80(D) mm | |
| Weight | Approx. 1.6kg | |

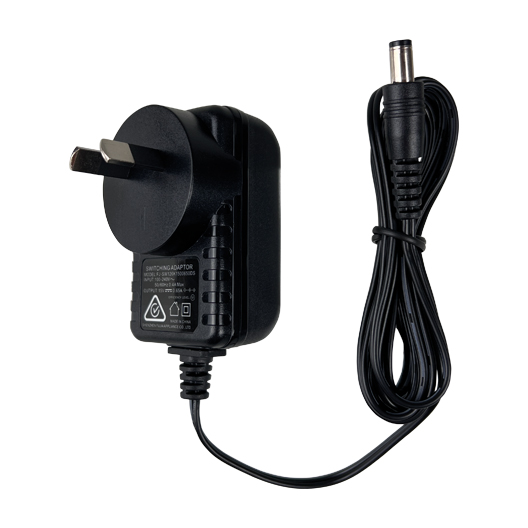

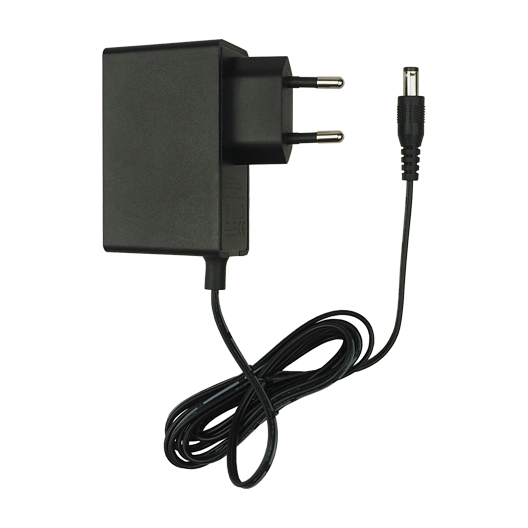

| Accessories | 7082 (Leads for recorder) 7083 (Leads for battery charging) 7084 (Earth and guard leads) 8266 (Battery charger[120V]) or 8267 (Battery charger[220V]) or 8264A (Battery charger[AU]) 9176 (Carrying case [Hard]) Ni-MH rechargeable battery × 8 Instruction manual |
|
*1 Variable in 10V increments
*2 With measurement voltage less than 2kV, 0 to 100GΩ is not guaranteed accuracy
