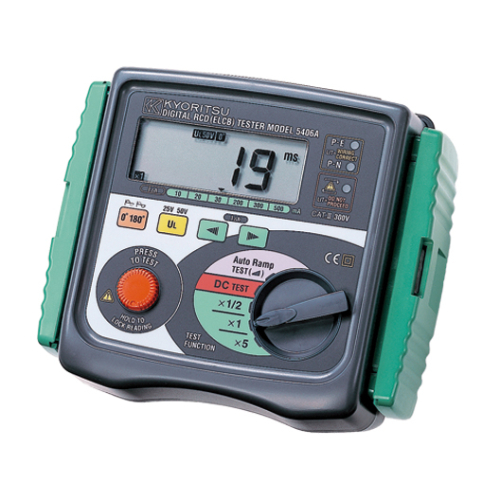

RCD TESTER
Custom microprocessor controlled for highest accuracy and reliability
- Custom microprocessor controlled for highest accuracy and reliability
- 3 LEDs for checking correct wiring status
- 0 and 180 degree phase angle switch permits quick tests and consistent readings
- Digital read-out of tripping time
- Test of a large kind of RCDs : Standard, Selective, AC and A(DC sensitive breakers)
- Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings
- Large custom digital display readout
- Visual indication of reversed phase and neutral wiring at socket
- Designed to IP54 Rating
- Complies with IEC 61557
Specification
| Rated Tripping Current | 10/20/30/200/300/500mA |
|---|---|
| Fault Condition Settings | × 1/2, × 1, × 5, × DC, AUTO RAMP |
| Trip Current Duration | 1000ms, 200ms (×5) |
| Lowest Resolution | 1ms |
| Trip Time Accuracy | ±0.6%rdg±4dgt |
| Operating Voltage | 230V+10-15% (195 - 253V) 50Hz |
| Applicable standards | IEC 61557-1,-6 IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2 IEC 61010-2-031 IEC 60529 (IP54) |
| Dimension | 167(L) × 186(W) × 89(D)mm |
| Weight | Approx. 800g |

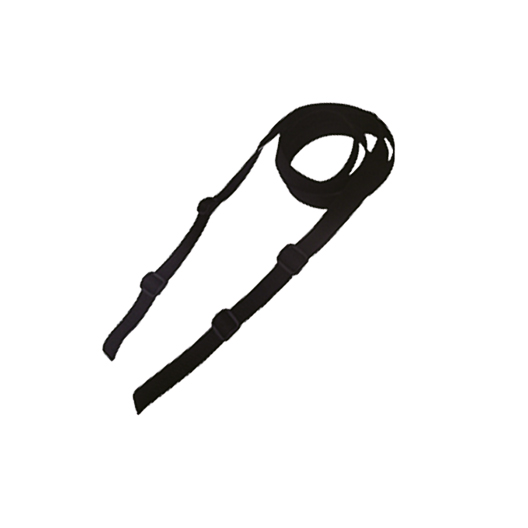

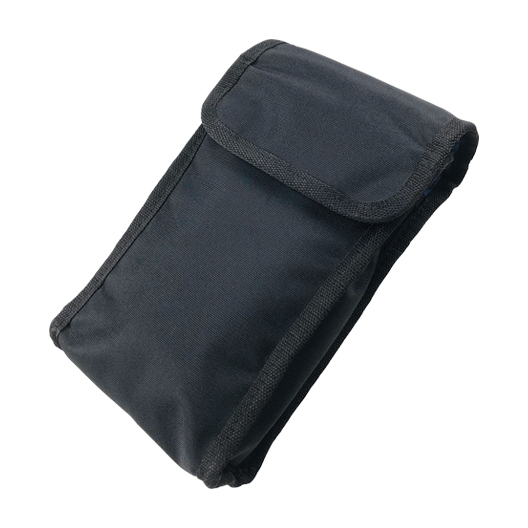

| Accessories | Molded plug test lead* 9121 (Shoulder Strap) 9147 (Cord case) Instruction Manual |

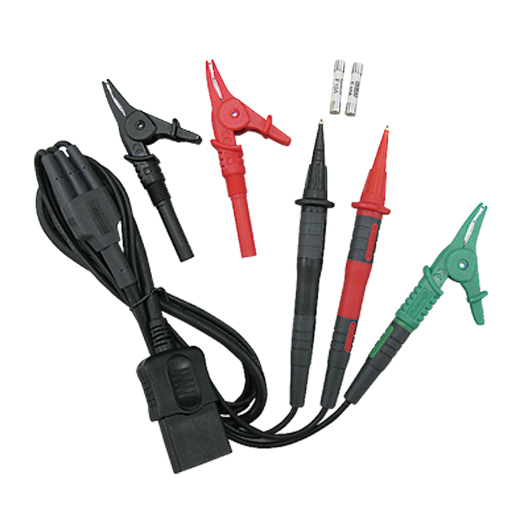

| Optional accessories | 7121B (Distribution board test leads) |

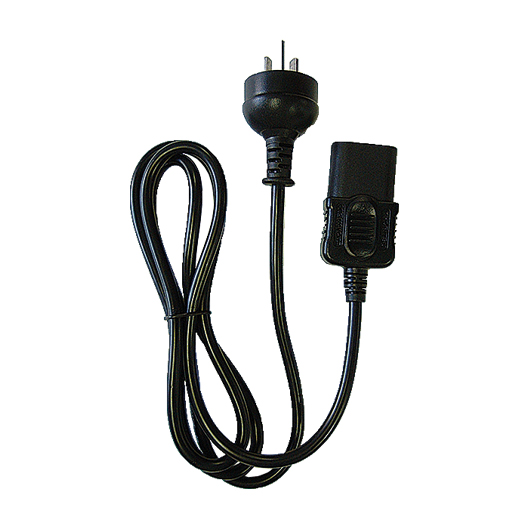

* 7123(AU): Australian plug

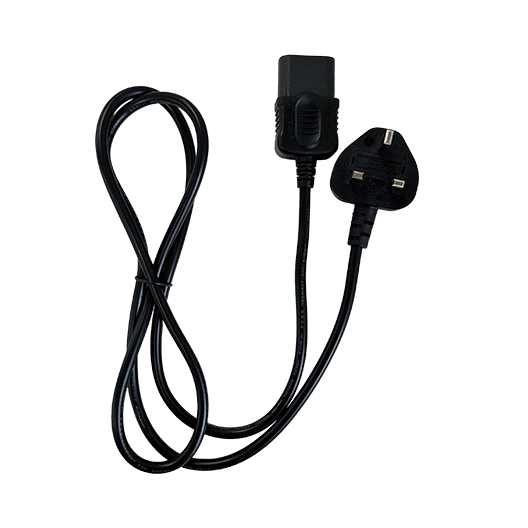

7124(UK): Britich plug(13A)
7125(EU): European SHUKO plug

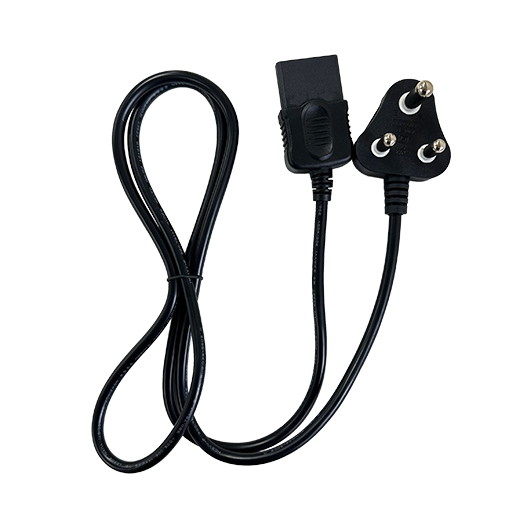

7126(SA): South african plug
