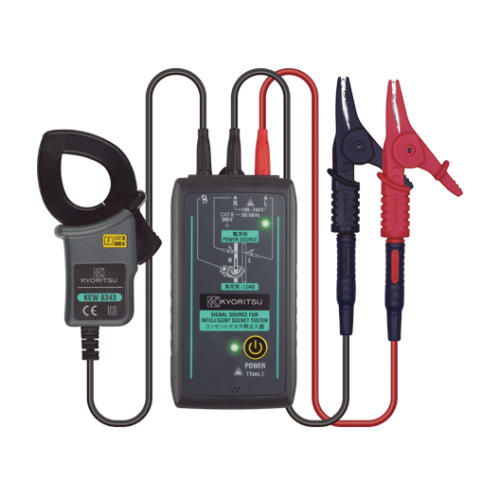

SIGNAL SOURCE FOR INTELLIGENT SOCKET TESTER

KEW 8343

When used in combination with the Intelligent Socket Tester (KEW 4506), the capabilities of the Intelligent Socket Tester can be greatly expanded.

*KEW 8343 is cannot be measured alone.

3D View

Specification

Applicable models	4506

Conductor size		Ø24mm max.
Test voltage	Freq.	Approx. 1.8kHz
Test voltage	TRMS	Approx. 20mV rms
Allowable input range		300V AC rms (50/60Hz) continuous / 100A AC (50/60Hz) continuous
Applicable standards		IEC 61010-1, IEC 61010-031, IEC 61010-2-032 CAT Ⅲ 300V Pollution degree 2, IEC 60529(IP40)
Operating temperature and humidity range		-10 - 50°C, relative humidity 85% or less (no condensation)
Storage temperature and humidity range		-20 - 60°C, relative humidity 85% or less (no condensation)
Power source		LR6 (AA)(1.5V) × 6
Dimension		Unit: 112(L) × 61(W) × 42(D) mm Test voltage injection clamp: 100(L) × 60(W) × 26(D) mm Cable length: Approx. 1.5m
Weight		Approx. 520g (including batteries)
Accessories		7157B (Alligator clips) 9096 (Carrying case) LR6 (AA) × 6, Instruction manual

Accessories

Catalog & Document

CASE STUDY

N-E(Neutral-Earth) reverse connection could be found under live condition.

Situation

【Australia】 It took two persons seven hours to determine that the cause of the RCD tripping in the field was a N-E reverse connection. Existing socket testers could not find the N-E reverse connection.
