NON-CONTACT SAFETY PHASE INDICATOR

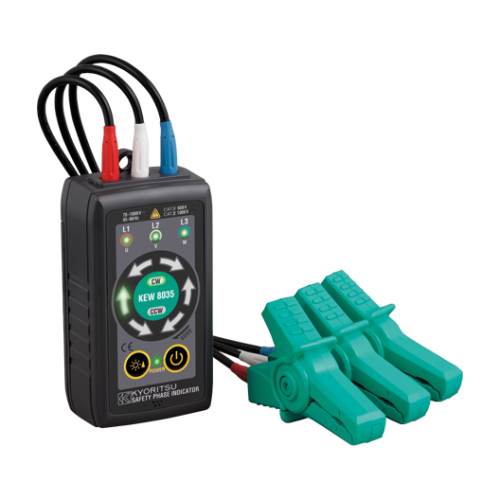

KEW 8035
• New technology permits safe testing, without the need of direct contact between probes and live wires
• The insulated alligator clips can clip insulated cables from φ2.4 to 30mm
• Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones
• A magnet on the backside of the instrument can fix the instrument onto the distribution board
• Wide measuring range for 3 phase installations from 70 to 1000V AC
• Super brightness function permits clear LEDs indication also in sunshine
• The insulated alligator clips can clip insulated cables from φ2.4 to 30mm
• Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones
• A magnet on the backside of the instrument can fix the instrument onto the distribution board
• Wide measuring range for 3 phase installations from 70 to 1000V AC
• Super brightness function permits clear LEDs indication also in sunshine
| Functions | Phase rotation (Clockwise or Counter Clockwise), Presence of open phase |
|---|---|
| Detection method | Electrostatic induction |
| Measuring voltage range | From 70 to 1000V AC phase to phase (sine wave, continuous input) |
| Clamp diameter range | From Ø2.4 to 30mm insulated cables |
| Measuring frequency range | 45 to 66Hz |
| Phase rotation | Clockwise: Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer Counter Clockwise: Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer |
| Visual indication | LEDs with Super brightness function |
| Battery voltage warning | Power LED blinks if battery voltage is too low. |
| Test leads | Double insulated cables, length Approx. 70cm |
| Colours leads | L1(U): RedL2(V): WhiteL3(W): Blue |
| Applicable standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree2, IEC 61326-1, IEC 61557-1, -7 |
| Operating temperature and humidity range | -10 - 50ºC, relative humidity 80% or less (no condensation) |
| Storage temperature and humidity range | -20 - 60ºC, relative humidity 80% or less (no condensation) |
| Power supply (DC battery) | LR6(AA)(1.5V) ×4 * Continuous use: Approx. 100 hours (Auto power off in about 10 min.) |
| Dimension | 112(L) × 61(W) × 36(D) mm |
| Weight | Approx. 380g |
| Accessories | 9096 (Carrying case) LR6(AA) × 4 Instruction manual |
