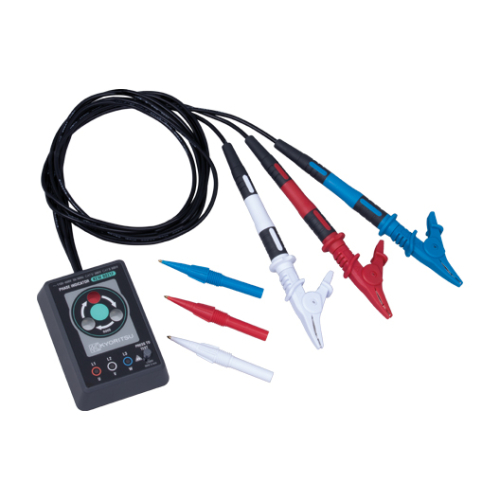

PHASE INDICATOR
Simple operation and ruggedness.
Check of open phase and phase sequence are possible in one unit.
- Phase indicator designed to check the presence of open phase and also the phase sequence by rotating disk and lamps
- Can check a wide range of 3-phase power source from 110V to 600V
Sealed against dust, the unit ensures trouble-free performance - Small, Lightweight and portable. Designed for maximum ease of operation and ruggedness
- No exposed metal parts, Safety features are incorporated including the instant push button switch operation
3D View
Product Overview

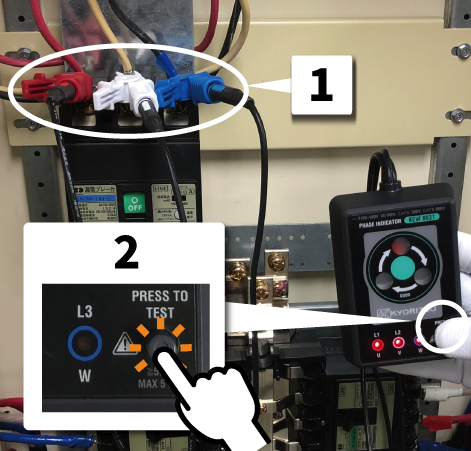

Simple operation
Two functions in one unit
Specification
| Operational Voltage | 110 to 600V AC |
|---|---|
| Fuse | 0.5A/600V (F) |
| Time limit for continuous | >500V : within 5 minutes |
| Frequency response | 50/60Hz |
| Cord | 1.3m (R:red S:white T:blue) |
| Applicable standards | IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V Pollution degree 2 |
| Dimension | 106(L) × 75(W) × 40(D)mm |
| Weight | Approx. 350g(Main unit only) |

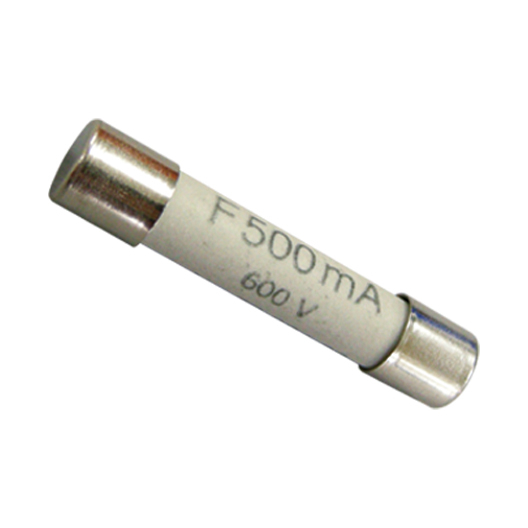

| Accessories | 8923 (Fuse [0.5A/600V]) 9094 (Carrying Case) Instruction Manual |
