RCD TESTER

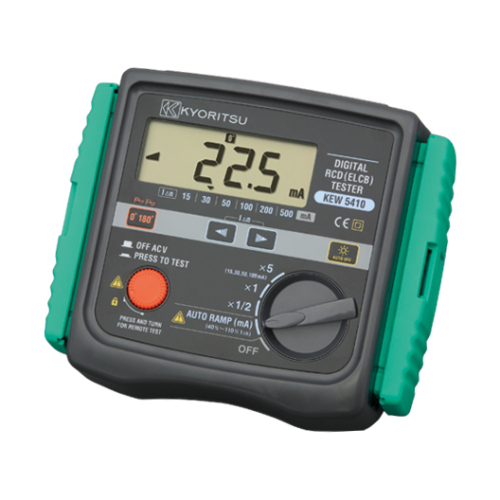

KEW 5410
• Measurement of RCD trip time
Conducting testing of rated residual non-operating currents at × 1/2 Range, measuring RCD trip time at × 1 and × 5 Ranges
• Measurement of trip out current
Measuring trip out current by varying current automatically
• Remote Test
Enabling a user to hold the Test Leads with his both hands by locking the Test Button
Measurement will automatically start when the main voltage is detected
• Voltage Measurement
Carrying out a constant measurement of voltage in the stand-by mode at each Range
• Auto-detection of Contact voltage
Detecting the voltage to earth of Earth electrodes or Protective conductors during RCD test
- when applying test currents - at measurement using EARTH in order to prevent electrical shocks caused by the damaged earth
Measurement will be ceased at AC50V or more
• Dust and Water proof
Dust and Water proof construction (designed to IEC 60529 IP54)
• Backlight
Facilitating working at dimly illuminated locations
Conducting testing of rated residual non-operating currents at × 1/2 Range, measuring RCD trip time at × 1 and × 5 Ranges
• Measurement of trip out current
Measuring trip out current by varying current automatically
• Remote Test
Enabling a user to hold the Test Leads with his both hands by locking the Test Button
Measurement will automatically start when the main voltage is detected
• Voltage Measurement
Carrying out a constant measurement of voltage in the stand-by mode at each Range
• Auto-detection of Contact voltage
Detecting the voltage to earth of Earth electrodes or Protective conductors during RCD test
- when applying test currents - at measurement using EARTH in order to prevent electrical shocks caused by the damaged earth
Measurement will be ceased at AC50V or more
• Dust and Water proof
Dust and Water proof construction (designed to IEC 60529 IP54)
• Backlight
Facilitating working at dimly illuminated locations
Measurement of RCD trip time - Measurement of trip out current
| Range | × 5 | × 1 | × 1/2 | AUTO RAMP(mA) |
|---|---|---|---|---|
| Rated Voltage | 100V±10% 200V-10%～+32% 400V±10% 50/60Hz |
|||
| Test current | 15/30/50/100mA | 15/30/50/100/200/500mA | ||
| Measuring range | Testing time 0ms～200ms |
Testing time 0ms～2000ms |
40 - 110% of lΔn (goes up by 5%) Testing time 300ms × 15steps |
|
| Accuracy (Trip Time) |
1%rdg±3dgt | Test Current at each step -4%～+4% |
||
|
Accuracy |
+2%～+8%dgt | -8～-2%dgt | ||
Voltage Measurement
| Measuring range | 80V～450V 50/60Hz |
|---|---|
| Accuracy | 2%rdg±4dgt |
| Applicable standards | IEC 61010-1 CAT III 300V / CAT II 400V Pollution degree2 IEC 61010-031 IEC 61557-1, 6 IEC 60529 (IP54) |
|---|---|
| Display | 1999 counts (3 1/2digits), Large LCD |
| Operating temperature and humidity range | 0 - 40ºC, relative humidity 85% (no condensation) |
| Storage temperature and humidity range | -20 - 60ºC, relative humidity 75% (no condensation) |
| Insulation resistance | 50MΩ or more / 1000V (between electrical circuit and enclosure) |
| Sleep Function | (1)Automatically enters Sleep mode in 3 minutes after the last switch operation (current consumption 75µA). This function doesn't work at voltage measurements. To exit from the Sleep mode, set the Function switch to OFF position once, and re-set it to the Range at which a measurement to be conducted. (2) Backlight turns off in 1 minute after it lights up. |
| Power source | DC 12V / R6(AA)(1.5V) × 8 |
| Dimension | 167(L)×186(W)×89(D)mm |
| Weight | Approx. 965g (including batteries) |
| Possible number of Measurements | 1200 times or more (measure every 30 seconds at ×1/2 Range, lΔn=100mA) |
| Accessories | 7128A (Test leads) 7129A (Test lead with alligator clip) 8017 (Extension prod long) × 2 9121 (Shoulder strap) 9147 (Cord case) Instruction manual, R6(AA) × 8 |
(*) Only the RCD type G (without trip out time-delay) can be tested at Auto Ramp Test,
type S (time-delay) cannot be tested.
