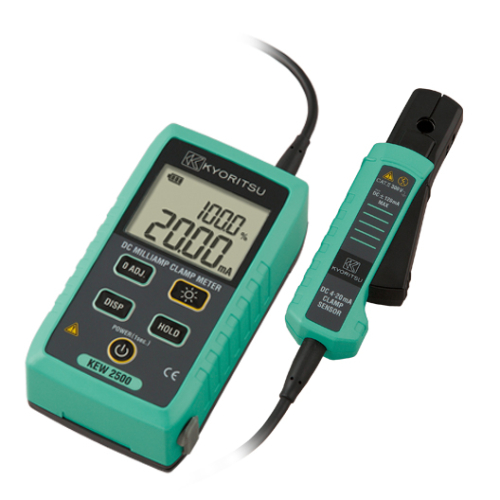

DC MILLIAMP CLAMP METER
0.01mA resolution for DC current
- 0.01mA resolution for DC current
- Top class mearuement with 0.2% accuracy
- Ø6mm clamp jaw easy to use in tight places
- Measurement from 0.01 to 120.0mA
- Dual display with backlight shows both measured value (mA) and percentage value of 4-20 mA span
- Spotlight for illuminating measurement point
- Analog output terminal for recorder connection
Video
Specification
DC A | 20/100mA(Auto-ranging) ±0.2%rdg±5dgt (0.00 - 21.49mA) ±1.0%rdg±5dgt (21.0 - 120.0mA) |
---|---|
Conductor size | Ø6mm max. |
Analog output | Recorder: DC 1000mV against DC 100mA |
Applicable standards | IEC 61010-1 Pollution degree 2 IEC 61010-2-032 , IEC 61326-1(EMC) IEC 60529 IP40 , EN50581(RoHS) |
Operating temperature and humidity range | -10 - +50°C , relative humidity 85% or less (no condensation) |
Storage temperature and humidity range | -20 - +60°C , relative humidity 85% or less (no condensation) |
Power source | R6/LR6 (AA) (1.5V) × 4 |
Dimension | 111(L) × 61(W) × 40(D)mm : Display unit 104(L) × 34(W) × 20(D)mm : Sensor 700mm : Sensor cable |
Weight | Approx. 290g (including batteries) |
Accessories | 9096 (Carrying case) LR6 (AA) × 4 , Instruction Manual |
Optional Accessories | 7256 (Output cord) |
