EVSE ADAPTER
KEW 8601
Dedicated adapter for EVSE
(Electric Vehicle Supply Equipment)
installation inspections, maintenance and troubleshooting

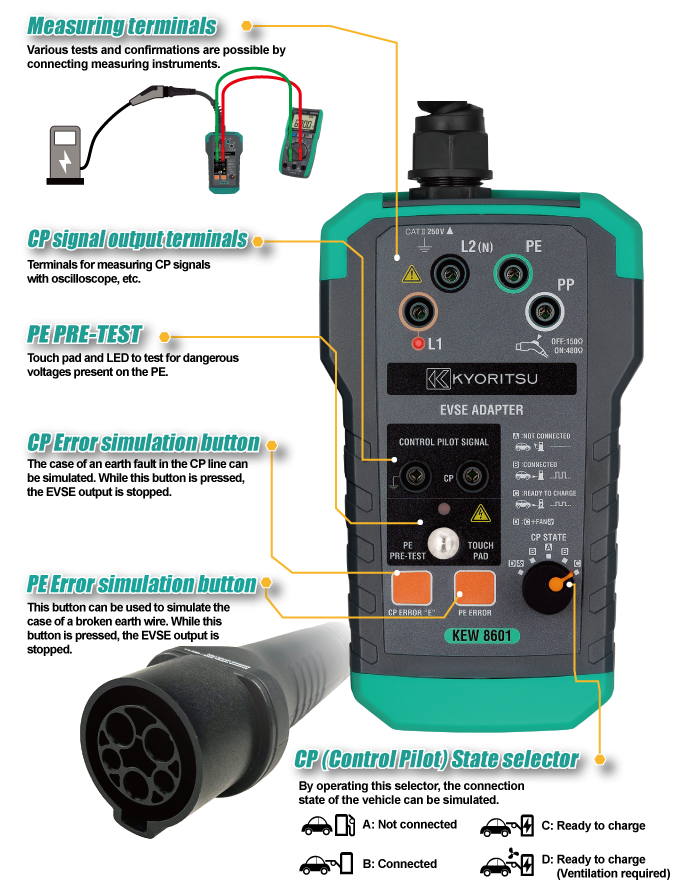

Compact adapter for complete testing of Mode 3 AC EVSE• EVSE tests under various simulations
• Touch pad for PE voltage check
• CP signal terminals for CP signal monitoring
*Supporting normal chargers (AC) only, not supporting fast (DC) chargers
What you can do with KEW 8601
Measurable tests by KEW 8601
| KEW 8601 only | KEW 8601 + other testers | |
|---|---|---|
| CP state | ✓ | |
| CP Error | ✓ | |
| PE Error | ✓ | |
| Live LED | ✓ | |
| Volts | ー | ✓ |
| Insulation | ー | ✓ |
| Earth | ー | ✓ |
| RCD | ー | ✓ |
| Checking CP signal | ー | ✓ |
Specification
| Plug | SAE J1772 / IEC 62196-2 Type 1 | |
|---|---|---|
| Rated voltage | AC 250V Max. | |
| Rated Frequency | 50/60Hz | |
| Operating temperature and humidity range | 0 - 40ºC, relative humidity 80 % or less (no condensation) | |
| Storage temperature and humidity range | -10 - 50ºC, relative humidity 80 % or less (no condensation) | |
| Applicable standards | IEC 61010-1, IEC 61010-2-030 CAT Ⅱ 250V IEC 60529 (IP40) |
|
| Altitude | 2000m or less | |
| Cable length | Approx. 250mm | |
| Dimension | Unit: 172(L) x 105(W) x 57(D) mm Plug part: 175(L) x 60(W) x 53(D) mm |
|
| Weight | Approx. 840g | |
| Accessories | 9202 (Carrying case) Instruction manual |
|
