- KEW 6024PV
PV INSULATION EARTH TESTER

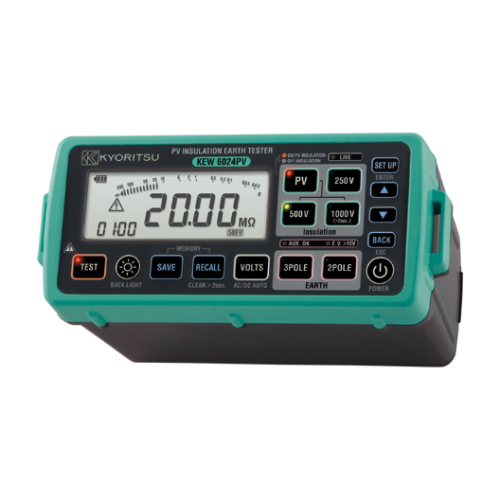

KEW 6024PV
• Accurate measuring of Insulation resistance even if the PhotoVoltaic (PV) arrays are generating power
• No need to short circuit the PV arrays or test at night to measure the Insulation resistance
• Earth resistance measurements with Voltamperometric method at 3 and 2 pole
• Waterproof design, ideally suited to work in bad weather condition
• Memory function up to 1000 data
• Luminescence buttons and large Backlight display
• Elapsed time, after starting a measurement, is displayed with the measured values
• Compact and light weight
• Test probe with a remote control switch is supplied as standard accessory
• Auto-discharge with voltage display
• USB adapter for data transfer to pc and software for analysis are supplied
• No need to short circuit the PV arrays or test at night to measure the Insulation resistance
• Earth resistance measurements with Voltamperometric method at 3 and 2 pole
• Waterproof design, ideally suited to work in bad weather condition
• Memory function up to 1000 data
• Luminescence buttons and large Backlight display
• Elapsed time, after starting a measurement, is displayed with the measured values
• Compact and light weight
• Test probe with a remote control switch is supplied as standard accessory
• Auto-discharge with voltage display
• USB adapter for data transfer to pc and software for analysis are supplied
| PV Insulation resistance* | |||||||
|---|---|---|---|---|---|---|---|
| Test voltage | 500V | 1000V | |||||
| Range(Auto-ranging) | 20.00/200.0/2000MΩ | ||||||
| Measuring range | 0.00- 1.50MΩ 200.1 - 2000MΩ |
1.51 - 200.0MΩ | 0.00- 1.50MΩ 1001 - 2000MΩ |
1.51 - 1000MΩ | |||
| Accuracy | ±5%rdg±6dgt | ±1.5%rdg±5dgt | ±5%rdg±6dgt | ±1.5%rdg±5dgt | |||
| Open circuit voltage | 1 - 1.2times | ||||||
| Short circuit current | 1.5mA or less | ||||||
| Insulation resistance | |||||||
| Test voltage | 250V | 500V | 1000V | ||||
| Range(Auto-ranging) | 20.00/200.0/2000MΩ | ||||||
| Rated current | 1.0 - 1.2mA | ||||||
| 0.25MΩ | 0.5MΩ | 1MΩ | |||||
| First effective measuring range | 1.51 - 100.0MΩ | 1.51 - 200.0MΩ | 1.51 - 1000MΩ | ||||
| Mid-scale value | 50MΩ | ||||||
| Accuracy | ±1.5%rdg±5dgt | ||||||
| Second effective measuring range | 1.20 - 1.50MΩ 100.1 - 2000MΩ |
1.20 - 1.50MΩ 200.1 - 2000MΩ |
1.20 - 1.50MΩ 1001 - 2000MΩ |
||||
| Accuracy | ±5.0%rdg±6dgt | ||||||
| Open circuit voltage | 1 - 1.2times | ||||||
| Short circuit current | 1.5mA or less | ||||||
| Earth resistance | |||||||
| Measuring range(Auto-ranging) | 20.00/200.0/2000Ω | ||||||
| Accuracy | ±3.0%rdg±0.1Ω (20Ω range) ±3.0%rdg±3dgt (200/2000Ω range) |
||||||
| Voltage measurement | |||||||
| Measuring range | AC 5 - 600V (45 - 65Hz) DC ±5 - 1000V | ||||||
| Accuracy | ±1.0%rdg±4dgt | ||||||
| General | |||||||
| Applicable Standards | IEC 61010-1 CAT Ⅳ 300V / CATⅢ 600V Pollution degree 2 IEC 61010-2-030, IEC 61010-2-034, IEC 61010-031, IEC 60529(IP54) IEC 61557-1,2,5,10, IEC 61326-1,2-2 |
||||||
| Power source | LR6(AA)(1.5V) × 6 | ||||||
| Dimension | 84(L) × 184(W) × 133(D)mm | ||||||
| Weight | Approx. 900g (including batteries) | ||||||
| Accessories | 7196B(Test leads with remote control switch) 7244A(Test lead with alligator clip) 8017(Extension prod long) 8072(CATⅡStandard prod) 8212-USB(USB adapter with “KEW Report(Software)”) 9155(Shoulder strap) 9156A(Soft case) LR6(AA) × 6, Instruction manual |
||||||
| Optional Accessories | 7243A(L-shaped probe) 7245A(Precision measurement cord set) 8016(Hook type prod) |
||||||
*6024PV supports PV systems up to 1000V.
