Dielectric Discharge

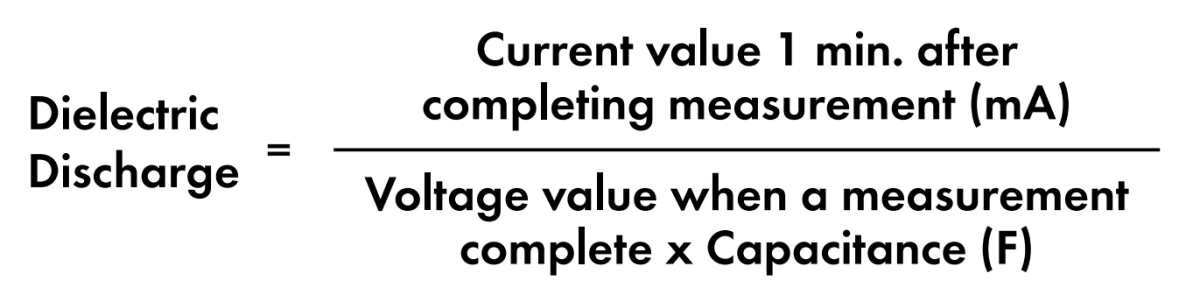

This measurement method is usually used to diagnosis multi-layer insulations, which requires the instrument to measure the discharge current and capacitance of the measured object 1 min after the removal of the test voltage. This is a very good insulation diagnosis test to detect deteriorations and other problems in the multiple insulation to be assessed.

  • This criteria is a guide and could be slightly changed and be adapted to particular objects under test based on practical experience of the users.
  • This method has been established to test high voltage generators installed in electric power plants in some Europe countries.
DD 2.0 or less 2.0 to 4.0 4.0 to 7.0 7.0 or more
Criteria Good Warning Poor Very Poor
