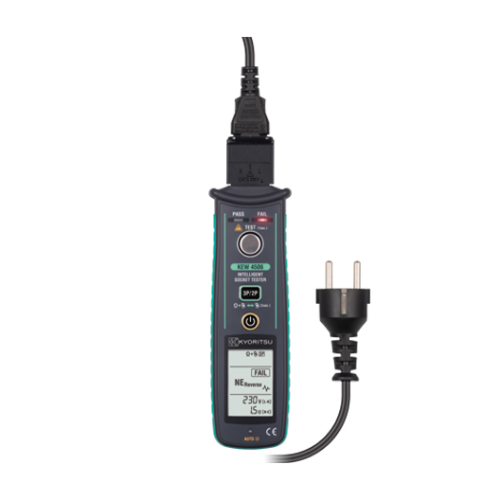

KEW 4506

KEW 4506
Perfect socket tester that finds out the
difficult-to-detect N-E Reverse connection!
• Easy measurement by simply plugging into a socket outlet and pressing the test button
• In only 1 second you can check voltage, correct wiring and polarity of Line, Neutral and Earth of a socket outlet
• KEW 4506 can be used on TT earth system, and also on TN-S by combined use with KEW 8343 (See measurement principle)
• Unique measurement method with low test current for avoiding tripping of RCDs

Why is Neutral-Earth Reverse connection a problem?

If a socket outlet is used without realizing there is mistake of N-E Reverse connection, the upstream RCD will trip causing a power shutdown.
But if the circuit is not protected by RCD, large load current flows in the Earth conductor, causing an electric shock and a fire hazard.

Judgement by a multimeter

When measuring with a multimeter, even if N and E are connected in reverse, the voltage will be the same as when they are connected correctly, and miswiring cannot be found.


Our intelligent socket tester, KEW 4506, can solve those problems!

Measurement principle

For TT System

If the Earth system is TT and the circuit is protected by an RCD with rated current of 30mA or more,
N-E Reverse can be detected by KEW 4506 alone.

In this case, to check if the N-E wiring is correct, KEW 4506 measures the resistance between L-N and the resistance between L-E respectively.
Normally in TT system, the L-N resistance is mainly due to the wiring conductors resistance only.
On the other hand, the L-E resistance includes also the consumer earth resistance (RE1 and RE2), so the L-E resistance is higher than just the L-N resistance.

RL+RN < RL +(RE1+RE2)

KEW 4506 detects N-E Reverse checking the difference of these resistance values.
Therefore, if the L-E resistance is extremely low, the Reverse connection of N-E may not be detected.
Also, a 10mA RCD may trip because a test current around 10mA is used to measure the resistance.
In above cases, we suggest to use KEW 8343 (Signal source) together with KEW 4506.
It will not be effected by the extremely low L-E resistance and any RCDs will not trip as the test current flowing between N-E is less than 1μA.

For TN system

To test wiring systems with low resistances such as TN, building structure, and common earth systems, connect KEW 8343 to the location close to the branch circuit breaker to which 3P outlet under test is wired and apply test voltage.
N-E Reverse can be detected by applying a test voltage from KEW 8343 into the neutral line and examining the direction of the signal.
*KEW 4506 and KEW 8343 cannot be used on TN-C or IT systems.
*Signal Source KEW 8343 is sold separately.

All test results and PASS/FAIL in a clear display screen
Easy measurement by simply
plugging into a socket outlet
and pressing the test button.
LCD backlight automatically
turns on at the dark place.
*It is possible to disable backlight

Where to use and limitations

KEW 4506 can test the wiring connection including the N-E Reverse of single-phase socket outlets.
This tester can test single phase socket outlets wired to Three-phase 4-Wire, Single-phase 3-Wire, Single-phase 2-Wire supply systems.
*KEW 4506 cannot be used for checking three-phase socket outlets and testing the RCD.

For use in a general TN system circuit, N-E Reverse can be determined only at socket outlets connected downstream of the N conductor where KEW 8343 is clamped. For checking Ring Circuit socket outlets, KEW 8343 must be connected to the upstream of the N conductor which supplies the ring circuit.

Socket test *1

Measurable range
of power supply
80 to 290V rms (50/60Hz)
*The tester gives voltage warning if 253V or higher voltage is detected
but it can perform
socket test.
Socket type 3 Pole 2 Pole

FAIL L-N Reverse L-N Reverse
L-E Reverse Abnormal voltage
N-E Reverse -
E Not connected -
N Not connected -
N-E unjudgeable -
Abnormal voltage -
AC V (L-N)
Range 80 to 290V rms (50/60Hz)
Accuracy ±2%rdg±4dgt
Loop resistance (N-E)
Range (Auto-ranging) 200Ω: 0.0 to 199.9Ω
2000Ω: 200 to 1999Ω
Test current 200Ω: 5mA (5.3 Hz)
2000Ω: 1mA (5.3 Hz)
Accuracy ±3%rdg±5dgt


Applicable standards IEC 61010-1, IEC 61010-2-030 CAT Ⅱ 300V Pollution degree 2, IEC 60529(IP40)
Operating temperature and humidity range -10 - 50°C, relative humidity 85% or less (no condensation)
Storage temperature and humidity range -20 - 60°C, relative humidity 85% or less (no condensation)
Power source LR6 (AA)(1.5V) × 2
Dimension 212(L) × 56(W) × 39(D) mm
Weight Approx. 250g (including batteries)
Accessories Test lead with IEC connector *3
9161 (Carrying case)
LR6 (AA) × 2, Instruction manual
Optional Accessories 8343 (Signal Source for Intelligent Socket Tester)

*1 If N-E resistance measurement function is turned off (*2), test is performed with a test voltage applied from an optional
     signal source only: current flows between N-E is less than 1µA
*2 If the function is disabled, KEW 4506 doesn’t show resistance between N-E.
*3 KAMP 10(AU): Australian plug / KAMP 10(EU): European SCHUKO plug /
     KAMP 10(UK): British plug(13A) / 7284: American(NEMA)plug
