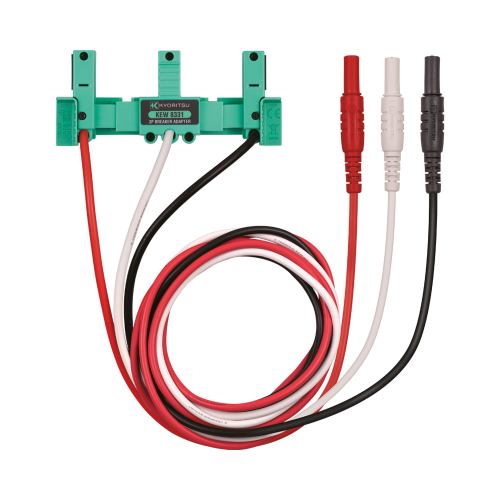

3P BREAKER ADAPTER
KEW 8331
Safe and secure connection with 3P breaker by single action!
- Helpful to prevent accidental detachment or short-circuit when connecting alligator clip to breaker.
- Ideal for long period of measurement such as power measurements by trustful connection.
- φ4 Banana plug enables connection with versatile measuring instruments.
3D View
Product Overview

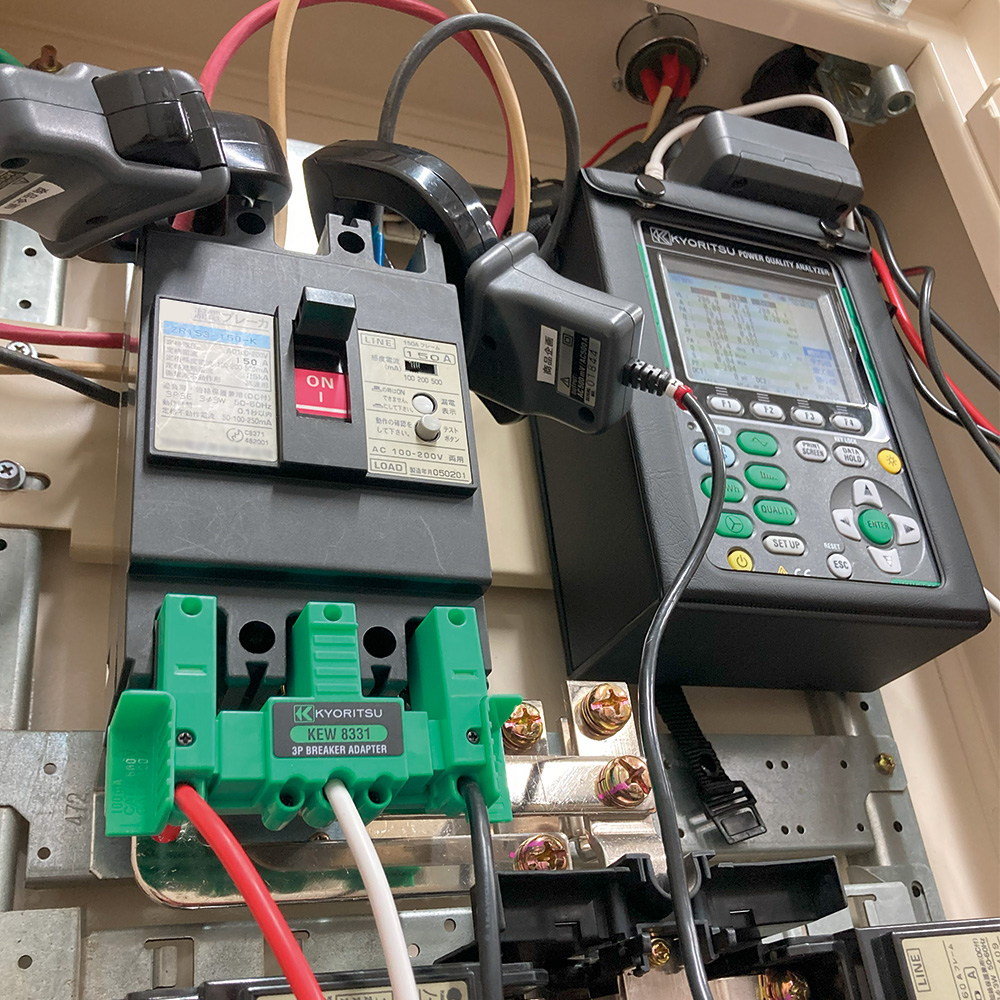

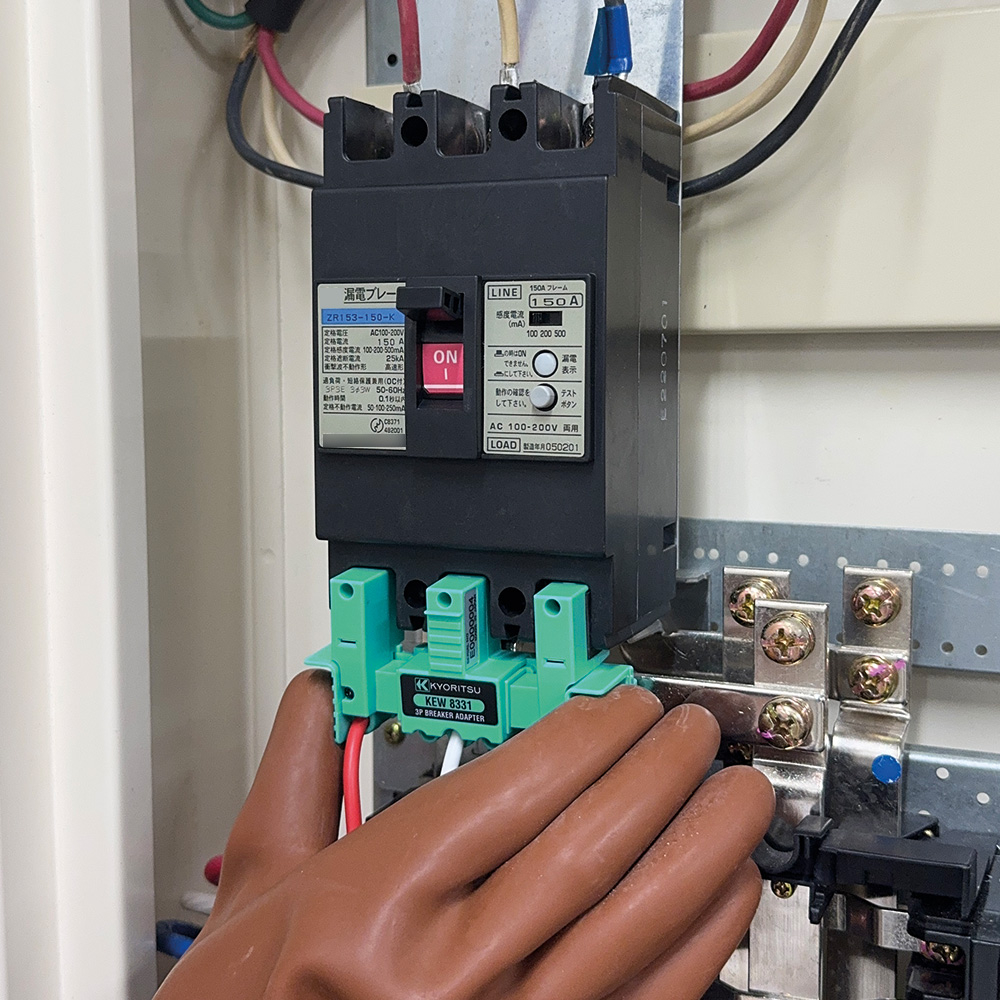

Safe and secure connection with one hand
- Compatible with various sizes of breakers.
- Not easily come off through out the long term use.
※Color in the window frame changing from black to white indicates the complete connection with the breaker terminals.
Equipped with highly versatile φ4 banana plug
- Compatible with various measuring instruments: multimeters, loggers, and power meters.
Length extendable tip attachment
- Length extendable!
Turning 8077 attachment upside down extends the length by 8 mm.
Compatible with male connector of measuring instrument

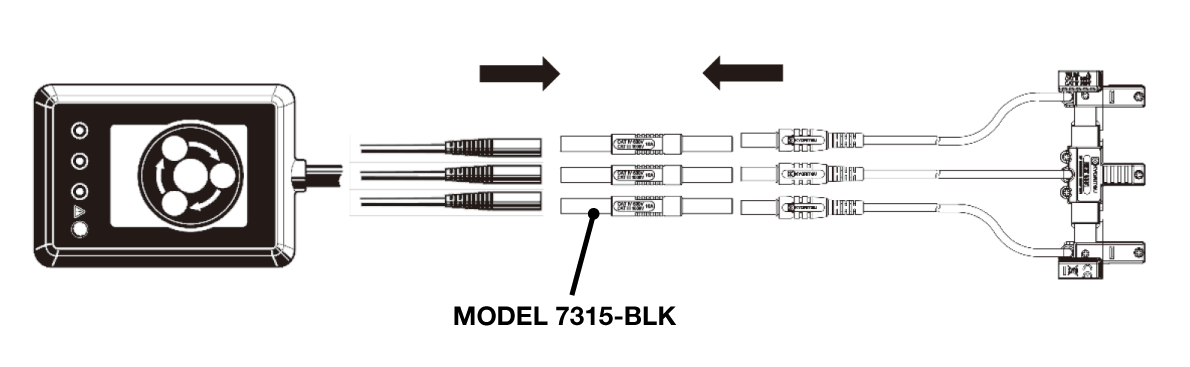

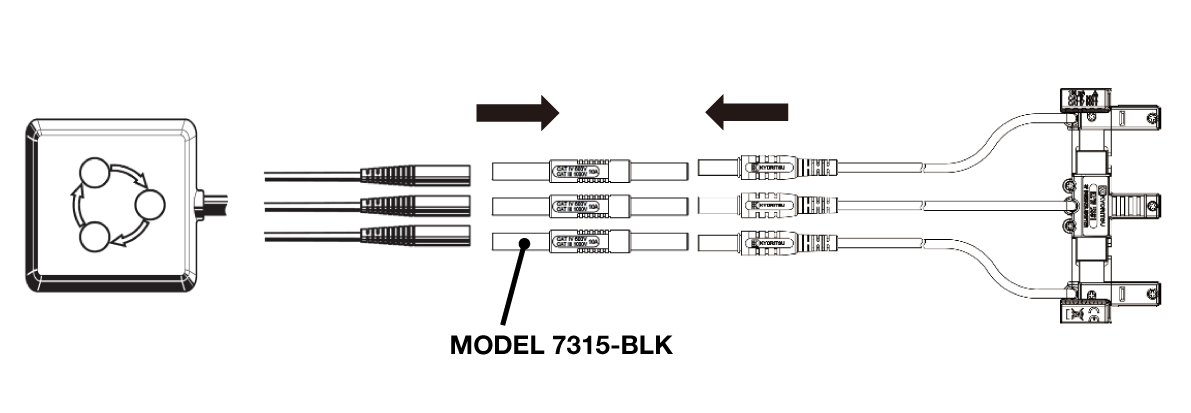

- Use of bananaφ4 female-female connector (7315-BLK, optional accessory) enables connection with male connector of measuring instrument.
Specification
| Supported size of breaker*1 | 30 to 250 AF |
|---|---|
| Operating voltage range | 0 to 600 Vrms AC [50/60 Hz] |
| Rated current | 100 ｍA |
| Operating temperature and humidity range | -10 to 50 °C, relative humidity 85% or less (no condensation) |
| Storage temperature and humidity range | -20 to 60 °C, relative humidity 85% or less (no condensation) |
| Cable length | 1.5 m |
| Applicable standards | IEC 61010-031 CAT Ⅳ 300 V / CAT Ⅲ 600 V |
| Dimension | 50(L)×117.5(W)×37(D) mm (excluding the cable part) |
| Weight | Approx. 230 g |
| Accessories | 8077（Tip attachment） Instruction manual |
| Optional accessories | 7315-BLK（Bananaφ4 female-female connector） 9096（Carrying case） |
*1：Attachable dimension ranges are as follows.
A Distance between the left and right screw heads of the breaker: 47 to 70 mm
B Width of the breaker terminal: 12.8 to 26.5 mm
C Depth from the top face of the wall breaker to the screw head: 5 mm (minimum)
There may be some breakers to which this product cannot be installed depending on its type.
Accessories
Optional Accessories
Catalog & Document
-
- Product Catalog
-
- Instruction Manual
