EARTH TESTER

KEW 4105DLBT-H

IP67 Dust & Water-Proof rugged EARTH TESTER
Bluetooth enabled for data transfer
Hard Case Model

3-Pole and 2-Pole Earth Resistance measurement (0.01-2000Ω)
Waterproof design (IP67)
Built-in Bluetooth® enables data transfer
Noise rejection up to 25V rms allows accurate testing in noisy environments
Rotary Switch makes the user interface very intuitive
Large LCD Display with Backlight
LED to monitor correct / non correct auxiliary earth spike resistance
Earth Voltage Measurement (AC/DC 0-300V)
CAT Ⅳ 100V

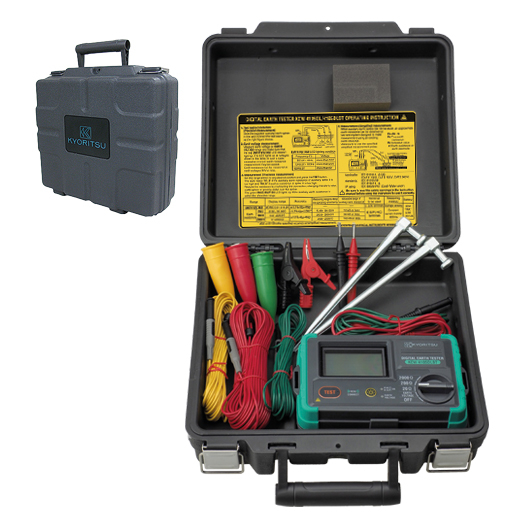

Hard case

3D View

Video

How to use ” KEW Smart Advanced App” and explaining each function.

Product Overview

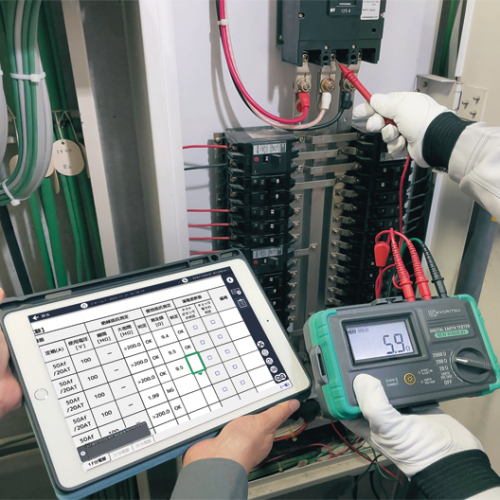

Measurement Data Managemant Application "KEW Smart Advanced"

One application can manage all supported models.
Click here for more information

Measurement Method

Measurement of the earth electrode resistance (3-Pole method)

The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.

Measurement of the simplified earth resistance (2-Pole method)

Various features

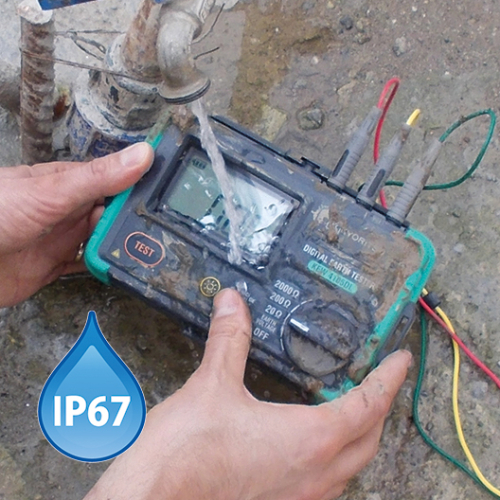

Dust and Waterproof

After use you can wash it to remove the mud and dust.

Strong noise rejection

Noise rejection up to 25V rms allows accurate testing in noisy environments.

Earth voltage warning

A red LED comes on if an external voltage is detected.

【LED light comes on if:】

Frequency	Voltage
0 - 10Hz	> 10V
10 - 100Hz	>25V
100 - 400Hz	>5V

Robust steel made earth spikes

Earth measurements are possible up to 100kΩ* of auxiliary earth spikes resistance.
*20Ω range 10kΩ, 200Ω range 50kΩ, 2000Ω range 100kΩ.

Auxiliary earth resistance check

4105DLBT-H checks if the auxiliary earth resistance is:

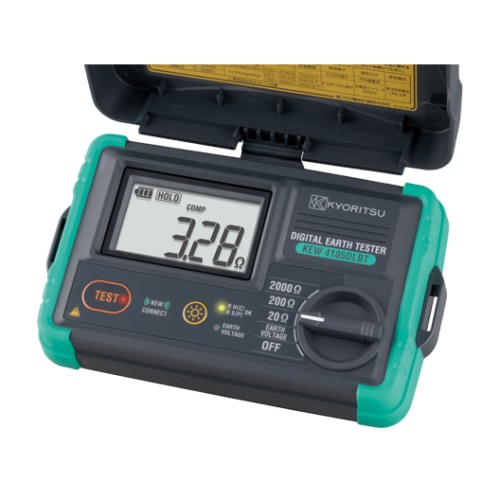

Large LCD Display with Backlight

Useful Accessories and Options for measurement

Robust forged earth spikes (MODEL 8041)

Robust forged earth spikes.

Cable reel for Earth resistance tester (MODEL 7267/7268)

Innovative Cable reel with wire guide system to facilitate rewinding.

Adapter for measurement terminal (MODEL 8259)

Adapter to enable use of other test leads.

Specification

Earth resistance measurement		20Ω	200Ω		2000Ω
	Measuring range	0.00 - 2000 Ω
	Display range	0.00 - 20.99 Ω	0.0 - 209.9 Ω		0 - 2099 Ω
	Accuracy^*1	±1.5%rdg±0.08 Ω^*2	±1.5%rdg±4dgt
	Auxiliary earth resistance^*3	<10kΩ	<50kΩ		<100kΩ
	Comparator reference value	10Ω	100Ω		500Ω
Earth voltage measurement
	Measuring range	0 - 300 V AC (45 - 65Hz)		±0 - ±300 V DC
	Display range	0.0 - 314.9 V		0.0 - ±314.9 V
	Accuracy	±1%rdg±4dgt
Applicable Standards		IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3 IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5 IEC 60529 (IP67), IEC 61326-1, 2-2
Communication interface		Bluetooth®5.0
Power source		LR6(AA)(1.5V) × 6
Dimension		121(L) × 188(W) × 59(D) mm (including case lid)
Weight		Approx. 690g (including batteries and case lid)
Accessories		7127B (Simplified measurement probe) 7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set]) 8041 (Auxiliary earth spikes [2spikes/1set]) 9121 (Shoulder strap) 9197 (Hard case) LR6(AA) × 6, Instruction manual
Optional Accessories		7267 (Cable reel for Earth resistance tester [red:20m]) 7268 (Cable reel for Earth resistance tester [yellow:10m]) 7271 (Earth resistance test lead [green:5m]) 7272 (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9190 (Carrying case) 9192 (Carring case for cord reels) 7269 (Earth resistance test lead (Red 20m)) 7270 (Earth resistance test lead (Yellow 10m))

*1 For precision measurement, auxiliary earth resistance should be 100 Ω ±5% or less.
*2 At simplified measurement add ±0.10 Ω to the specified accuracy.
*3 Accuracy within the auxiliary earth resistance: ±5% rdg ±10 dgt.
