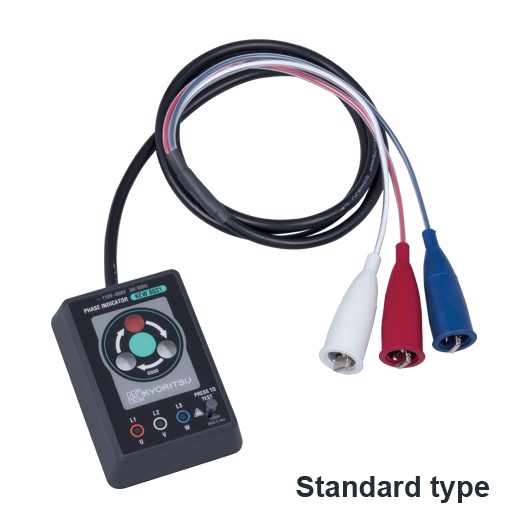

PHASE INDICATOR
Simple operation and ruggedness.
Check of open phase and phase sequence are possible in one unit.
- Phase indicator designed to check the presence of open phase and also the phase sequence by rotating disk and lamps
- Can check a wide range of 3-phase power source from 110 to 600V
Sealed against dust, the unit ensures trouble-free performance - Small, Lightweight and portable. Designed for maximum ease of operation and ruggedness
3D View
Product Overview
Simple operation
Two functions in one unit
Specification
| CE Type | Standard Type | |
|---|---|---|
| Operational voltage | 110 to 600V AC (50/60Hz) | |
| Time limit for continuous | >500V (within 5 minutes) | |
| Applicable standards | IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V Pollution degree 2 | non compliant with CE |
| Dimension | 106(L) × 75(W) × 40(D)mm | |
| Weight | Approx. 350g(Main unit only) | |

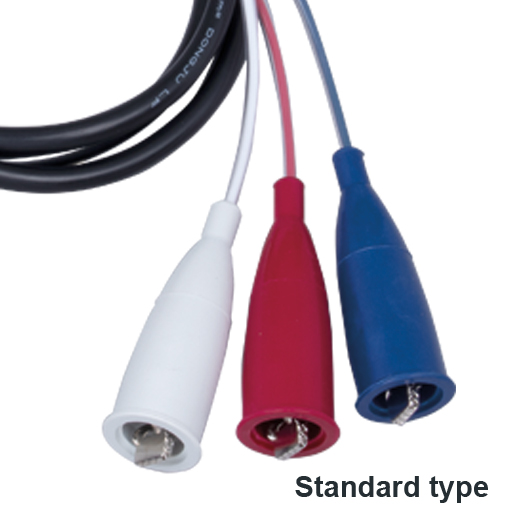

| Cord | 1.5m (L1(U): red/ L2(V): white/ L3(W): blue) | |
| Accessories | 9095 (Carrying Case) Instruction manual |
|
Accessories
Catalog & Document
-
- Product Catalog
-
- Instruction Manual
-
- KEW 8031 for CE type Instruction Manual (English)（965.11 KB）
- KEW 8031 for Standard type Instruction Manual (English)（679.21 KB）
- KEW 8031 for CE type Instruction Manual (Arabic)（795.96 KB）
- KEW 8031 for CE type Instruction Manual (French)（448.83 KB）
- KEW 8031 for CE type Instruction Manual (Indonesian)（429.33 KB）
- KEW 8031 for CE type Instruction Manual (Spanish)（429.84 KB）
- KEW 8031 for Standard type Instruction Manual (Spanish)（720.97 KB）
- KEW 8031 for CE type Instruction Manual (Thai)（386.18 KB）
- KEW 8031 for CE type Instruction Manual (Vietnamese)（825.05 KB）
