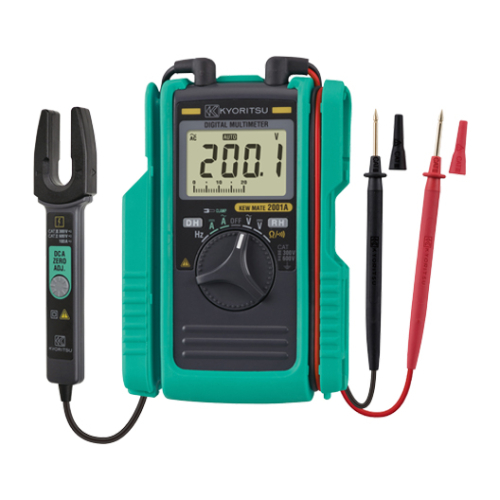

DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR
Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 100A
- Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 100A
- Cable strength increased with robust cable protection
- Test probe can be fixed to the holster
- Can measure AC/DC current and voltage
- Pocket size and heavy duty design
- Test lead cap to protect from short circuit accident
- The open jaws are thin, perfect to clamp wires even in tight spaces
Video
Product Overview

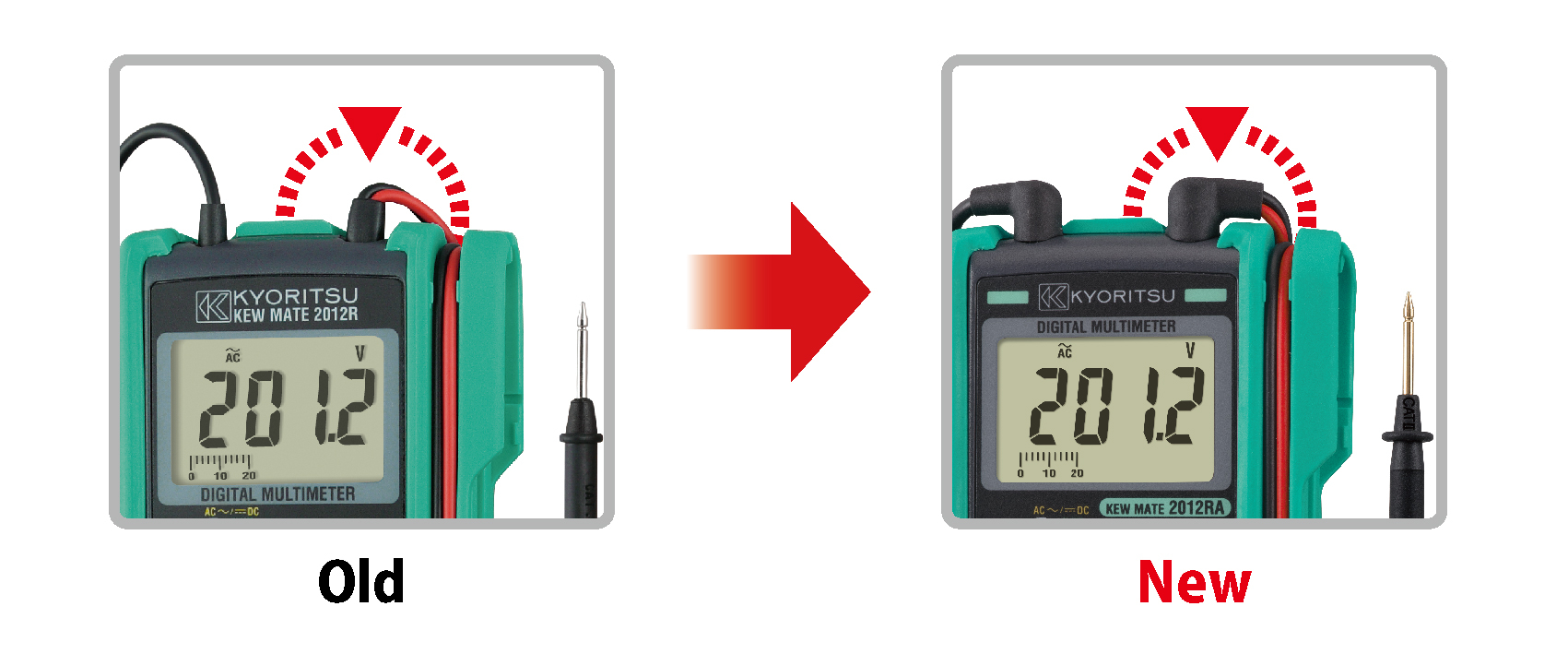

New cable rubber protection

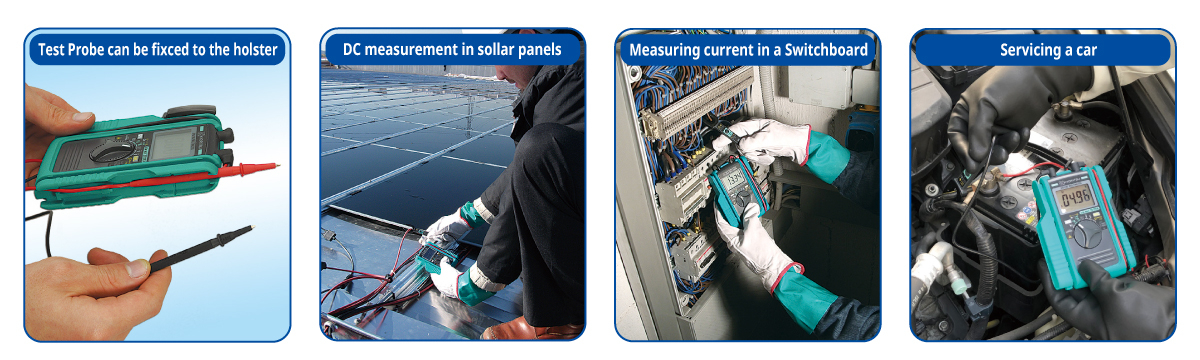

Application examples
Specification
| DC V | 340.0mV/3.400/34.00/340.0/600V (Input Impedance: Approx. 10MΩ) ±1.5%rdg±4dgt |
|---|---|
| AC V | 3.400/34.00/340.0/600V (Input Impedance: Approx. 10MΩ) ±1.5%rdg±5dgt [50 - 400Hz] |
| DC A | 100.0A ±2%rdg±5dgt |
| AC A | 100.0A ±2%rdg±5dgt (50/60Hz) |
| Ω | 340.0Ω/3.400/34.00/340.0kΩ/3.400/34.00MΩ ±1%rdg±3dgt (0 - 340kΩ) ±5%rdg±5dgt (3.4MΩ) ±15%rdg±5dgt (34MΩ) |
| Continuity buzzer | Buzzer sounds below 30±10Ω (Continuity buzzer works on 340Ω range only) |
| Frequency | (AC A) 3.400/10.00kHz ±0.1%rdg±1dgt (AC V) 3.400/34.00/300.0kHz ±0.1%rdg±1dgt (Input sensitivity Current: more than 25A, Voltage: more than 30V) |
| Conductor size | Ø10mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS) |
| Power source | R03 (AAA)(1.5V) × 2 * Continuous measuring time: Approx. 45 hours (Auto power save: Approx. 10 minutes) |
| Dimension | 128(L) × 92(W) × 27(D)mm |
| Weight | Approx. 220g (including batteries) |
| Accessories | R03 (AAA) × 2 Instruction Manual |
| Optional accessories | 9107 (Soft case) |
