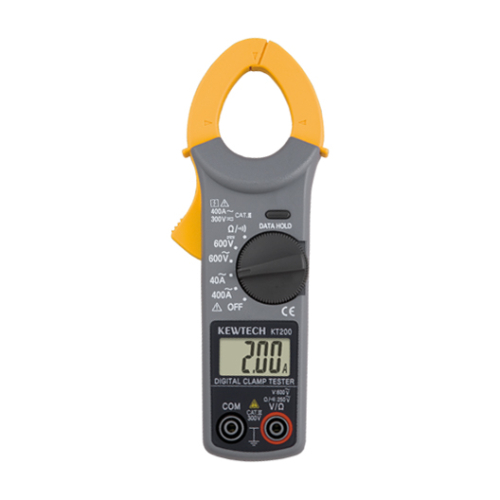

AC DIGITAL CLAMP METER
KT 200
• Small and handy clamp meter
• IEC 61010-1 Safety Standard CAT Ⅲ 300V / CAT Ⅱ 600V
• 400A AC Clamp meter
• DMM function ACV, DCV, Ω Continuity Buzzer
• IEC 61010-1 Safety Standard CAT Ⅲ 300V / CAT Ⅱ 600V
• 400A AC Clamp meter
• DMM function ACV, DCV, Ω Continuity Buzzer
| AC A | 40.00/400.0A ±2.0%rdg±6dgt(50/60Hz) |
|---|---|
| AC V | 400.0/600V(Auto-ranging) ±2.0%rdg±5dgt(50/60Hz) |
| DC V | 400.0/600V(Auto-ranging) ±1.5%rdg±5dgt |
| Ω | 400.0/4000Ω(Auto-ranging) ±2.0%rdg±5dgt |
| Continuity buzzer | Buzzer sounds below 50±35Ω |
| Conductor size | φ30mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V(ACA) / CAT II 600V Pollution degree 2 IEC 61010-2-032, IEC 61326-1 |
| Power source | R03(1.5V)(AAA) × 2 *Continuous measuring time: Approx. 200hours (Auto power save: Approx. 10 min.) |
| Dimension | 184(L) × 44(W) × 27(D)mm |
| Weight | Approx. 190g(including batteries) |
| Accessories | 7066A (Test leads) R03 (AAA) × 2, Instruction Manual |
| Optional Accessories | 9105 (Carrying case) |
Accessories/Optional Accessories /Related Products
- Instruction Manual
