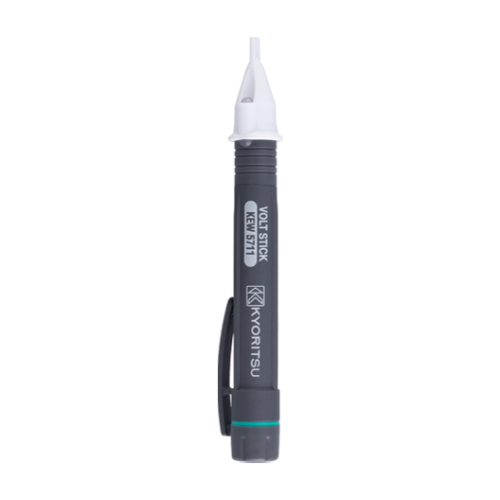

Voltage Detector

KEW 5711

NEW
KEW 5711
CE
• Senses AC voltage through insulation
• Buzzer sounds and tip glows upon ac voltage detection
• Powerful flashlight
• Dual range (Hi/ Lo) sensitivity
• Ready to use without power-on
• Designed to meet IEC61010-1
  • CAT4 600V
Operating voltage AC 90 - 1000 V(Lo sensitivity)
AC 20 - 1000 V(Hi sensitivity)
Frequency range 50/60Hz
Operating temperature -10 - 50°C
Storage temperature -20 - 60°C
Applicable Standards IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V
Pollution degree 2
Power source LR03 / R03(AA)(1.5V) × 2
Dimensions 153(L) × φ20mm
Weight Approx. 40g (including batteries)
Accessories LR03(AA) × 2, Instruction manual
