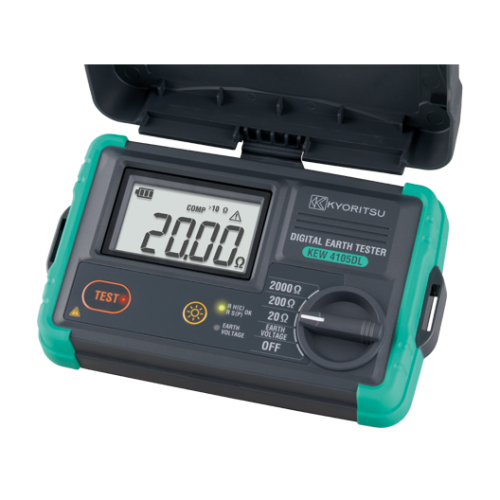

EARTH TESTER
KEW 4105DL
IP67 Dust & Water-Proof rugged EARTH TESTER
Cable Reel Set Model
・3pole and 2pole Earth Resistance measurement (0.01Ω‐2000Ω)・Waterproof design
・Noise rejection up to 25V rms allows accurate testing in noisy environments
・Rotary Switch makes the user interface very intuitive
・Large LCD Display with Backlight
・LED to monitor correct / non correct auxiliary earth spike resistance
・Earth Voltage Measurement (AC / DC 0‐300V)
・CAT Ⅳ100V

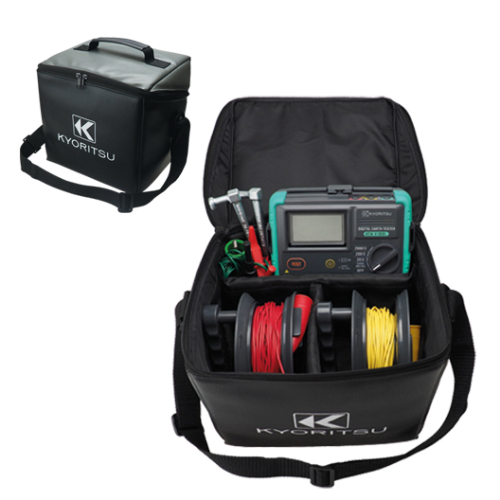

Carrying case
*Please check here for the hard case model.
Measurement Method
Measurement of the earth electrode resistance (3-Pole method)
The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.
Measurement of the simplified earth resistance (2-Pole method)
Various features
Dust and Waterproof
After use you can wash it to remove the mud and dust.
Strong noise rejection
Noise rejection up to 25V rms allows accurate testing in noisy environments.
Earth voltage warning
A red LED comes on if an external voltage is detected.
【LED light comes on if:】
| Frequency | Voltage |
|---|---|
| 0 - 10Hz | > 10V |
| 10 - 100Hz | >25V |
| 100 - 400Hz | >5V |
Robust steel made earth spikes
Earth measurements are possible up to 100kΩ* of auxiliary earth spikes resistance.*20Ω range 10kΩ, 200Ω range 50kΩ, 2000Ω range 100kΩ.
Auxiliary earth resistance check
4105DLBT-H checks if the auxiliary earth resistance is:
Large LCD Display with Backlight
Useful Accessories and Options for measurement
Robust forged earth spikes (MODEL 8041)
Robust forged earth spikes.

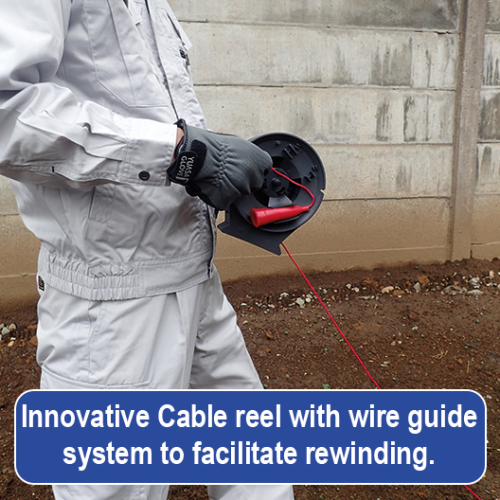

Cable reel for Earth resistance tester (MODEL 7267/7268)
Innovative Cable reel with wire guide system to facilitate rewinding.
Adapter for measurement terminal (MODEL 8259)
Adapter to enable use of ather test leads.
| Earth resistance measurement | 20Ω | 200Ω | 2000Ω | ||||
|---|---|---|---|---|---|---|---|
| Measuring range | 0.00 - 2000 Ω | ||||||
| Display range | 0.00 - 20.99 Ω | 0.0 - 209.9 Ω | 0 - 2099 Ω | ||||
| Accuracy*1 | ±1.5%rdg±0.08 Ω*2 | ±1.5%rdg±4dgt | |||||
| Auxiliary earth resistance*3 | <10kΩ | <50kΩ | <100kΩ | ||||
| Comparator reference value | 10Ω | 100Ω | 500Ω | ||||
| Earth voltage measurement | |||||||
| Measuring range | 0 - 300 V AC (45 - 65Hz) | ±0 - ±300 V DC | |||||
| Display range | 0.0 - 314.9 V | 0.0 - ±314.9 V | |||||
| Accuracy | ±1%rdg±4dgt | ||||||
| Applicable Standards | IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3 | ||||||
| Power source | LR6(AA)(1.5V) × 6 | ||||||
| Dimensions | 121(L) × 188(W) × 59(D) mm (including case lid) | ||||||
| Weight | Approx. 690g (including batteries and case lid) | ||||||
| Included Accessories | 7127B (Simplified measurement probe) 8041 (Auxiliary earth spikes [2 spikes/1set]) 9121 (Shoulder strap) 7267 (Cable reel for Earth resistance tester [red:20m]) 7268 (Cable reel for Earth resistance tester [yellow:10m]) 7271 (Earth resistance test lead [green:5m]) 9190 (Carrying case) LR6(AA) × 6, Instruction manual |
||||||
| Optional Accessories | 7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set]) 7269 (Earth resistance test leads [red:20m]) 7270 Earth resistance test leads [yellow:10m]) 7272 (Precision measurement Cord set) 8259 (Adapter for measurement terminal) 9191 (Hard case) |
||||||
*1 For precision measurement, auxiliary earth resistance should be 100 Ω ±5% or less.
*2 At simplified measurement add ±0.10 Ω to the specified accuracy.
*3 Accuracy within the auxiliary earth resistance: ±5% rdg ±10 dgt.
