MULTI-TRAN
MODEL 8008
Discontinued products
• Adaptor designed to increase the measuring capability of your clamp meters.• With the use of the multi-tran you can not only extend current ranges but also on a conductor of larger diameter.
How to use

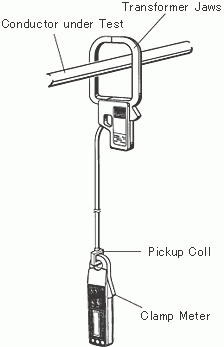

Clamp your instrument around the pick-up coil of the multi-tran.
Then, clamp the transformer jaws of the multi-tran on the conductor, as shown below.
Multiply the reading of your clamp meter by 10 to obtain the current value measured
| Measuring range | 0 - 3000A AC |
|---|---|
| Ratio/Range | 10 : 1 (input to output) |
| Accuracy | ±2% of input±0.5A |
| Allowable measurement time | 0 - 1000A (continuous), 1000 - 1500A (10 minutes max.) 3000A (30 seconds max.) |
| Conductor size | Ø100mm max.(100 × 150mm) |
| Frequency response | 50Hz/60Hz |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 |
| Dimension | 317(L) × 150(W) × 30(D)mm 45(L) × 40(W) × 10(D)mm Output coil |
| Weight | 750g approx. |
| Accessories | 9056(Carrying Case) |
