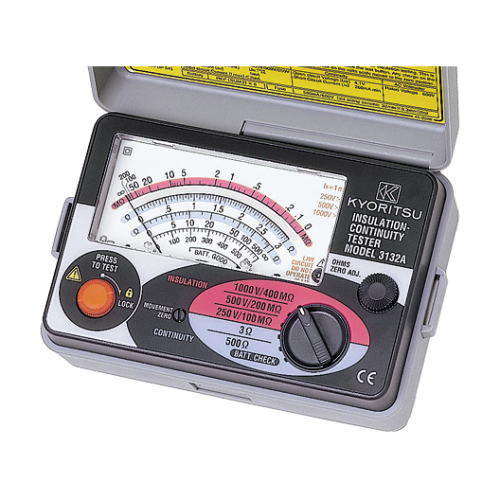

ANALOGUE INSULATION / CONTINUITY TESTER
MODEL 3132A
Analogue Insulation / Continuity Tester
• Dust and Drip-proof construction (designed to IEC 60529 IP54)• Designed to meet IEC 61010-1 and IEC 61557 safety standard
• 1mA rated test current at the minimum resistance
• 200mA measuring current on continuity testing
• Automatic discharge of circuit capacitance
(Any charge stored in the circuit under test will be automatically discharged after testing)
• Live circuit warning buzzer and neon lamp
• Small and lightweight. Shock resistant new case material
• AC voltmeter with linear, easy-to-read scale
• Operates on AA, R6 × 6 dry batteries
Insulation Resistance
Test voltage | 250/500/1000V |
---|---|
Measuring ranges<br>(Mid-scale value) | 100/200/400MΩ (1/2/4MΩ) |
Output voltage on open circuit | Rated test voltage+20%, -0% |
Nominal current | 1mA DC min. |
Output short circuit current | 1 - 2mA DC |
Accuracy | 0.1 - 10/0.2 - 20/0.4 - 40MΩ (Accuracy Guaranteed Ranges) ±5% of indicated value |
Continuity
Measuring ranges<br>(Mid-scale value) | 3/500Ω (1.5/20Ω) |
---|---|
Output voltage on open circuit | Approx. 4.1V DC |
Measuring current | 210mA DC min. |
Accuracy | ±1.5% of scale length |
AC Voltage
AC Voltage | 0 - 600V AC |
---|---|
Accuracy | ±5% of scale length |
General
Safety Standard | IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-034, IEC 61557-1,2,4 IEC 61557-1/2/4 |
---|---|
IP Rating | IEC 60529-IP54 |
EMC Standard | IEC 61326-1 |
Power source | R6 (AA) (1.5V) × 6 |
Dimension | 106(L) × 160(W) × 72(D)mm |
Weight | Approx. 560g |
Accessories | 7122B (Test leads) Pouch for test leads 8923(Fuse[0.5A/600V]) × 1 (included), 1 (spare) R6 (AA) × 6 9121 (Shoulder Strap) Instruction Manual |
