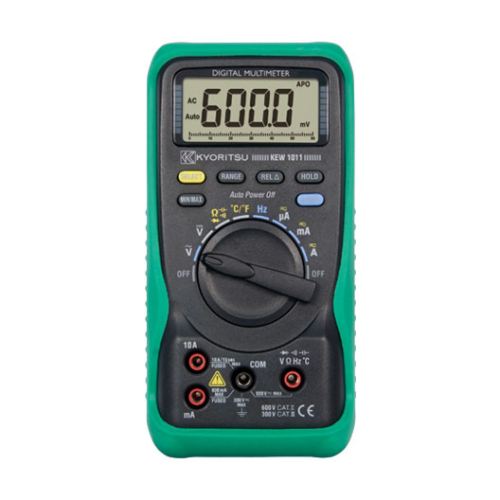

DIGITAL MULTIMETER

KEW 1011

6040 counts with Bar Graph display

  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function
  • Temperature measurement, selectable for °C and °F
  • DUTY measurement function

Specification

DC V 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV)
±0.5%±2dgt (600.0mV/6.000/60.00/600.0V)
±0.8%±3dgt (600V)
AC V 6.000/60.00/600.0/600V (Input Impedance: 10MΩ)
±1.0%±3dgt (6.000/60.00/600.0V)
±1.5%±3dgt (600V)
DC A 600/6000µA/60/600mA/6/10A
±1.2%±3dgt (600/6000µA/60/600mA)
±2.0%±5dgt (6/10A)
AC A 600/6000µA/60/600mA/6/10A
±1.5%±4dgt (600/6000µA/60/600mA)
±2.2%±5dgt (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ
±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ)
±2.0%±3dgt (60MΩ)
Continuity buzzer 0 - 600Ω (Buzzer sounds below 100Ω)
Diode test 2.8V open circuit voltage: Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period)
±2.0%±2dgt (- 10kHz)
Temperature -50 - 300ºC (-58 - 572ºF)
(with the use of Temperature probe 8216)
Note: KEW 1011 can measure max. 700ºC In order to measure over 300ºC, please use a K-type temperature probe available in the market.
Applicable standards IEC 61010-1 CAT III 300V / IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031 IEC 61326
Display 6040 Counts
Power source R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimension 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories 7066A (Test leads)
8216 (K-type Temperature probe)
8918 (Ceramic fuse[0.8A/600V]) × 1 (included)
8919 (Ceramic fuse[10A/600V]) × 1 (included)
R6 × 2
Instruction Manual
Optional accessories 7234 (Crocodile clip test lead)
9095 (Carrying case)
