Analogue Insulation Testers

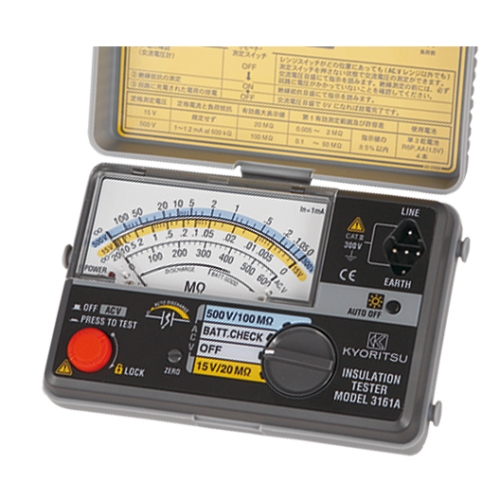

MODEL 3161A

MODEL 3161A
CE
AutoDischarge
Analogue Insulation / Continuity Tester
• Miniature lightweight insulation tester. It weighs only 340g(battery included),
but carries full measurement functions.
• Automatic discharge of circuit capacitance.
• Test leads with remote control switch.
• New robust housing case.
• Back light function.
• Neck strap for both hands operation
  • ACV
  • Backlight
  • 15V
  • 500V

Insulation Resistance

DC Test Voltage 15V/500V
Max. effective scale value 20MΩ/100MΩ
Mid-scale value 0.05MΩ/2MΩ
First effective measuring range 0.005 - 2MΩ/
0.1 - 50MΩ
Accuracy ±5% of Indicated Value
Second effective measuring ranges Measuring ranges other than above, 0 and ∞
Accuracy ±10% of Indicated Value

AC Voltage

AC voltage range 600V
Accuracy ±3% of Full Scale

General

Safety Standard IEC/EN 61010-1 CAT III 300V, CAT II 600V
Power source R6 (AA) (1.5V) × 4
Dimensions 90(L) × 137(W) × 40(D) mm
Weight 340g approx.
Included Accessories 7149A (Remote control switch set)
Neck Strap
R6 (AA) × 4
Instruction Manual
Optional Accessories 7116 (Extension Probe)
8016 (Hook type prod)
