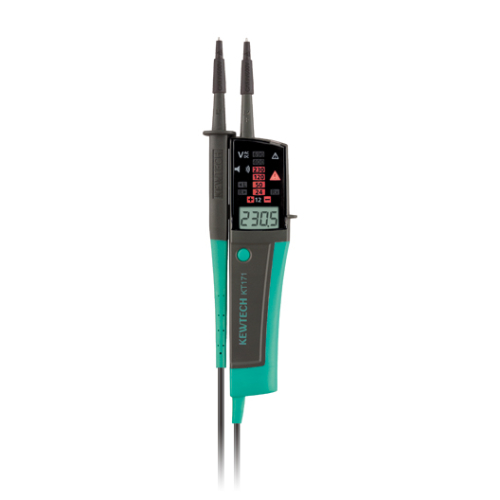

VOLTAGE TESTER
Comply with the latest standards IEC 61243 and IEC 61010
- Comply with the latest standards IEC 61243 and IEC 61010
- Novel design
Large and bright LEDs: Values are visible in the dark place
Ergonomic design fits in the hand - Two functions are available in one model
“Measurement without battery” and “Self Test (all LED on)” - Test leads withstand harsh environments at low temperature
- Penlight (white LED)
- Auto power ON/OFF
- Audible indication
- Variable test tips, φ2mm or φ4mm
- Probe protection cover can store the attachment of caps
- IP65 (IEC 60529)
Product Overview
Voltage Test (Double-pole Test)
Single-pole Phase Test
Variable top tips
Store the attachment of caps
Probe Protection Cover
4mm Tips Replacement
How to fixing 4mm Tips on L1 probe- and L2 probe+.
Specification
| Voltage Test | |||
|---|---|---|---|
| Voltage Range | 12 - 690V AC/DC | ||
| LED | Nominal Voltage |
12/24/50/120/230/400/690V AC (16 - 400Hz), DC (±) |
|
| Tolerance (Threshold Voltage) |
Light on at more than: 7±3V (12V LED) 18±3V (24V LED) 37.5±4V (50V LED) 75%±5% of nominal voltage (120/230/400/690V LED) |
||
| Response Time | <0.6s at 100% of each nominal voltage | ||
| LCD | Range/ Resolution (Auto-range) |
300V AC/DC (6.0 - 299.9)/0.1V 690V AC (270 - 759)/1V 690V DC (270 - 710)/1V |
|
| Peak Current | ls<3.5mA (at 690V) | ||
| Accuracy (23±5ºC) |
±1.5V (7 - 100V) ±1%±5dgt (100 - 690V) AC (16 - 400Hz), DC(±) |
||
| Overrange Indication |
"OL" | ||
| Response Time |
Approx. 1s at 90 - 110% of each voltage | ||
| Measurement Duty |
30s ON (operation time) 240s OFF (recovery time) |
||
| Peak Current | ls<3.5mA (at 690V) | ||
| Measurement Duty | 30s ON (operation time) 240s OFF (recovery time) |
||
| Single-pole Phase Test | |||
| Voltage Range | 100 - 690V AC (50/60Hz) | ||
| Phase Rotation Test | |||
| System | Three-phase 4-wire system 200 - 690V phase-to-phase AC (50/60Hz) |
||
| Phase Range | 120±5 degree | ||
| Continuity Test | |||
| Detection Range | 0 - 400kΩ+50% | ||
| Test Current | Approx. 1.5μA (battery 3V, 0Ω) | ||
| Applicable standards | IEC 61243-3, IEC 61010-1, IEC 61557-7 CAT Ⅳ 600V / CAT Ⅲ 690V Pollution degree 2, IEC 60529 (IP65) | ||
| Operating temperature and humidity range | -15 - 55°C, relative humidity 85% or less (no condensation) | ||
| Storage temperature and humidity range | -20 - 60°C, relative humidity 85% or less (no condensation) | ||
| Power source | LR03 (AAA) 1.5V×2 | ||
| Dimension | 246(L)×64(W)×26(D) mm | ||
| Weight | Approx. 190g (including batteries) | ||
| Accessories |
LR03 (AAA) 1.5V×2 |
||
Catalog & Document
-
- Instruction Manual
