INFRARED THERMOMETER
MODEL 5500
Discontinued products
• Simple temperature measurement from -40ºC to 500ºC• Laser sight pinpoints measured spots.
• Palm size,lightweight 180g only.
• Automatic power off for saving battery life.
• Maximum or minimum temperature display.
• Audible buzzer high alarm standard.
• Emissivity adjustable from 0.30 to 1.90 in 0.01 steps.
• Backlight.

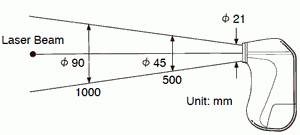

Distance to Spot Size
 |
Caution
|
| Ranges | -40ºC - 500ºC |
|---|---|
| Detecting Element | Thermopile |
| Spectral Range | 8 - 14µm |
| Measuring Diameter | Ø45 at a distance of 500mm |
| Measuring Accuracy | ±1%rdg±2ºC, whichever is the greater at an ambient temperature of 25ºC |
| Repeatability | Within±1ºC |
| Response Time | 0.8 second (90% response) |
| Collimation | Laser beam marks the center of the area measured |
| Beam Diameter | 5mm approx. (at a distance of 1m) |
| Beam Output | Less than 1mW, 670nm, IEC Class2 |
| Display Indications | Current reading, Maximum, Minimum, Reading Hold, Emissivity, Alarm Point, Low Battery |
| Auto Power Off | Automatically shuts power off if no key is pressed for 30 seconds |
| Alarm | Upper limit alarm with a beeper Lower limit alarm, optional |
| Emissivity Correction | Selectable from DARK (0.95), BRIGHT (0.80) and FREE (variable between 0.30 and 1.90, initial value is 1.00) |
| Display Illumination | Automatic back light |
| Power Source | LR6 (1.5V) × 2 |
| Battery Life | approx. 60 hours for continuous use |
| Dimensions | 142(L) × 81(W) × 32(D)mm |
| Weight | 180g approx. |
| Accessories | LR6 × 2 Soft Vinyl Case Instruction Manual |
