MODEL 5361

Discontinued products
MODEL 5361
Discontinued products
TWO CHANNEL AC VOLT/AMP RECORDER

• Complete with Model 5321 module to measure and record
AC voltage and AC current.
• Range Switch selects 150V, 300V or 600V input voltage.
• Basic recorder and input are isolated by internal circuitry
(500V AC max. withstand voltage for voltage input only).
• Three clamp adaptors are available for different application needs.
• Single dot for voltage and two dots for currents are imprinted alternately.
5361 (5360+5321)
Input Ranges AC Voltage
AC Current
150/300/600V AC
6/15/60/150/300A AC (using Model 8101 AC clamp adaptor)
15/30/150/300/1500A AC (using Model 8103 AC clamp adaptor)
30/150/300/1500/3000A AC (using Model 8104 AC clamp adaptor)
Accuracy ±3% of full scale value
Dimensions 82(W)× 82(H) × 49.2(D)mm (module only)
Weight 340g approx. (module only)
Optional 8103 (Clamp Adapter)
8104 (Clamp Adapter)
9047 (Carrying Case)

Chart Paper

  • Non-Take-up Mode No.5350-005 (30 divisions)
  • Take-up Mode No.5350-008 (30 divisions)

Scale

No.C-01

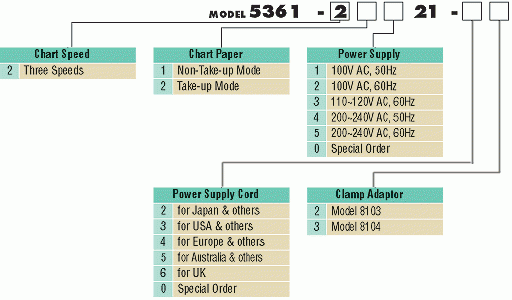

Ordering Information

  • Inquiry by e-mail
