Specification
5351 (5350+5307 or 5308)
| 5307 | 5308 | |
|---|---|---|
| Input Ranges | (for Pt-100 Temp. probe) | (for Type K Temp. probe) |
| -60ºC - 0ºC 0ºC - +60ºC | +600ºC - +1200ºC 0ºC - +150ºC | |
| -50ºC - +100ºC 0ºC - +150ºC | +300ºC - +600ºC 0ºC - +300ºC | |
| -20ºC - +40ºC 0ºC - +300ºC | +150ºC - +300ºC 0ºC - +600ºC | |
| Accuracy | ±3% of full scale | ±4% of full scale |
| Dimensions | 82(W) × 82(H) × 48(D)mm (module only) |
|
| Weight | 300g approx. (module only) | |
| Optional | 8067 (Temperature Sensor) | |
| 8068 (Temperature Sensor) | ||
| 8069 (Temperature Sensor) | ||
Back of module case
| For Pt-100 Temperature Sensor | For K Type Temperature Sensor |
 |
 |
| 5307 | 5308 |
Chart Paper
- Non-Take-up Mode No.5350-005(30 divisions)
- Take-up Mode No.5350-008(30 divisions)
Scale
| No. T-13(for Pt-100) | No. T-12(for Type K) |
 |
 |

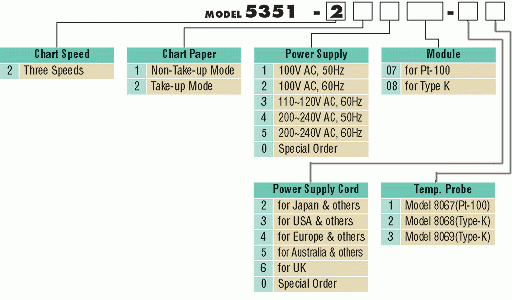

Ordering Information
Chart Cassettes
