Basic Recorder only
(Model 5350 One Channel)
(Model 5360 Two Channels)
• DIN size 96mm×96mm bezel and 92mm×92mm panel opening.
• Compact and lightweight for easy panel or portable use.
• Dot printing on clean, inkless, pressure sensitive paper.
• Removable chart cassette permits simple loading and unloading of chart paper.
• 50 mm chart width.
• Three chart speeds of 1"(25.4mm), 12"(304.8mm) and 24"(609.6mm) per hour available. The desired speed is selected by pulling out and rotating the switch to the appropriate position.
• Both one channel basic recorder Model 5350 and two channel basic recorder Model 5360 are available.
• Complete with one of the modules listed above, a temperature module, for example, Model 5350 or 5360 basic 1mA/250mV recorder makes a temperature monitor.
Specification
Basic Recorder Module | Descriptions |
---|---|
5350 + 5307 | 6-range Temperature Recorder (Pt-100) |
5350 + 5308 | 6-range Temperature Recorder (K type) |
5360 + 5321 | AC Volt-Amp Recorder |

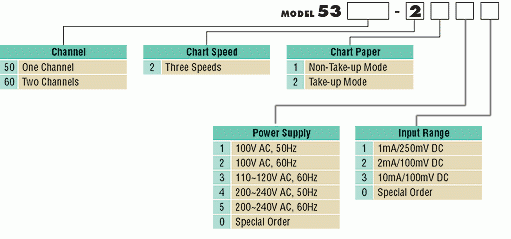

BASIC RECORDERS 5350 (1 Channel) & 5360 (2 Channels)
Recordings System | Direct dot printing on pressure sensitive paper |
---|---|
Input Ranges | 1mA/250mV DC, 2mA/100mV DC, 10mA/100mV DC |
Meter Scale Accuracy |
±2% of full scale value |
Chart Speed | Single Speed:1'' (25.4mm)per hour Three Speeds:1'' (25.4mm)/12'' (304.8mm)/24'' (609.6mm)per hour |
Imprint Rate | 60 dots per inch at all speeds (120 dots for channel No.2 of Model 5360 2 channel recorder) |
Chart Paper | 2.1/2'' (63.5mm) × 65.6feet(19m)for non-take-up mode 2.1/2'' (63.5mm) × 32.8feet(9.5m)for take-up mode |
Chart width | 50mm (1.97in) |
Scale Length | 55.5mm (2.19in) |
Operating Temperature Range | -10ºC - +50ºC |
Power Supply | 100V, 110 - 120V, 200 - 240V AC, 50Hz or 60Hz (specify on order) |
Power Consumption | 3.5VA |
Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 |
Dimensions | 96(W) × 96(H) × 162(D)mm |
Weight | 880g approx. |
