Clamp Sensors/Adaptors

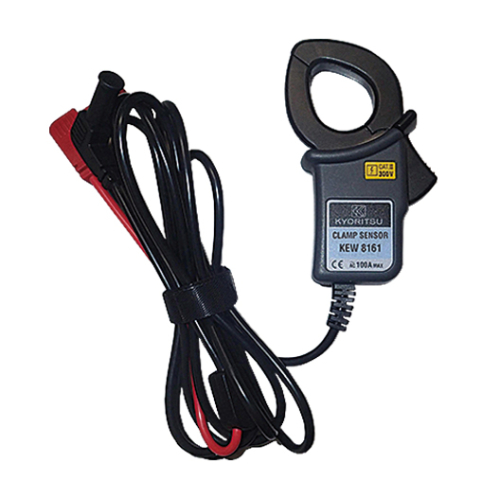

KEW 8161

KEW 8161
CE
AC Clamp Sensor
• KEW 8161 clamp Sensor is designed to be an AC current/voltage conversion probe capable of measuring AC current up to 100A in conjunction with digital multimeters
  • φ24
  • MAX100A
  • ACA
Conductor size Ø24
Rated current AC 100A
Output voltage AC 1000mV / VC 100A (AC 10mV/A)
Accuracy ±2.0%rdg±3.0mV (45Hz - 65Hz)
±2.5%rdg±3.0mV (65Hz - 1kHz)
Cable length Approx. 1.2m
Output connector Ø4mm banana plug
Output impedance Approx. 22Ω
Applicable standards IEC 61010-1 CAT III 300V pollution degree 2,
IEC 61010-2-032
Operating temperature & humidity range -10 to 50°C, less than 85% RH
(without condensation)
Dimensions 97(L) × 59(W) × 26(D) mm
Weight Approx. 120g
Included Accessories Instruction manual
