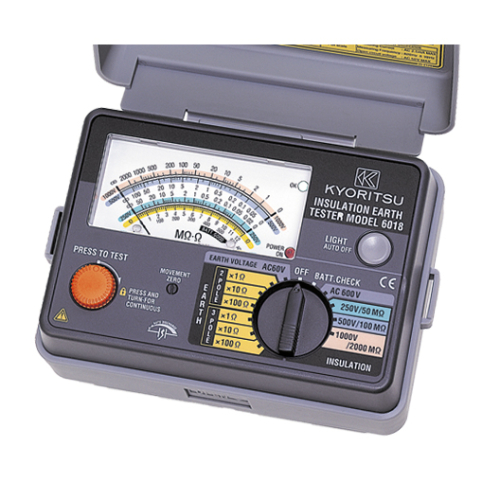

MULTI FUNCTION INSTALLATION TESTER
Designed to meet IEC 61010-1 CAT III 600V
- Designed to meet IEC 61010-1 CAT Ⅲ 600V
- Test leads with remote control switch.
(For insulation&Simplified Earth Test) - Back light function.
- Color coded scales and range switch position for easy reading.
- Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
- Can be hung around the neck for both hand’s operation.
Specification
| Insulation Testing | ||
|---|---|---|
| Test Voltage | 250V/50MΩ 500V/100MΩ 1000V/2000MΩ |
|
| Accuracy | ±5%rdg | |
| Earth Resistance | ||
| Simplified Precision measurement |
12/120/1200Ω | |
| Accuracy | ±3% of full scale value | |
| AC Voltage | ||
| 0-600V AC | ±3% of full scale value | |
| Earth Voltage | ||
| 0-60V AC | ±3% of full scale value | |
| Applicable Standard | IEC 61010-1 CAT Ⅲ 600V Pollution Degree 2, IEC 61010-2-034, IEC 61010-2-031 IEC 61557 | |
| Power source | LR6 (1.5V) × 8 | |
| Dimension | 130(L) × 183(W) × 100(D)mm | |
| Weight | Approx. 1000g | |
| Accessories | 7103A (Test leads with remote control switch) 7131B (Safety alligator clips [black]) 7161A (Flat test prod [black]) 8017 (Extension prod long) 9092 (Cord case) 9121 (Shoulder strap) R6 (AA) × 8, Instruction Manual |
|
| Optional Accessories | 7095A (Earth resistance test leads) 7150A (Test leads with remote control switch set) 7245A (Precision measurement Cord Set) 8016 (Hook type prod) |
|
Optional Accessories
Catalog & Document
-
- Instruction Manual
