Multi Function Testers

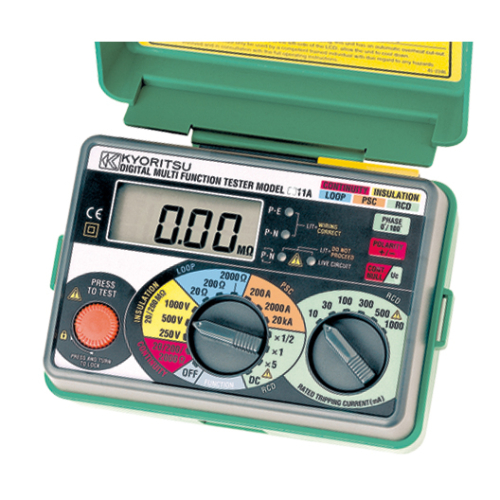

MODEL 6011A

MODEL 6011A
CE
• Complies with IEC 61557
• Designed to IP 54 Rating
• Live circuit and wiring connection check LED's
• Triple ranges insulation tests at 250, 500 and 1000V
• Triple range loop and PSC tests 15mA test current at 200Ω/2000Ω range(No RCD Trip)
• Phase angle selection on RCD ranges
• Polarity switch for continuity tests
• Auto-null facility for continuity tests
• Earth probe for loop impedance testing on extraneous metalwork
• Contact Voltage Reading
• Test of a large kind of RCD's: Standard, Selective, AC and A
(DC sensitive breakers)
Continuity Testing
Measuring Ranges 20/200/2000Ω (Autoranging)
Open Circuit Voltage >6V
Short Circuit Current >200mA DC
Accuracy ±(1.5%rdg+3dgt)
Insulation Testing
Measuring Ranges 20/200MΩ (Autoranging)
Test Voltage 250V 500V 1000V DC
Output Voltage on Open Circuit 250V+40%-0%
500V+30%-0%
1000V+20%-0%
Rated Current > 1mA
Accuracy ±(1.5%rdg+3dgt)
Loop Impedance Testing
Rated Voltage 230V AC +10%-15% [50Hz]
Voltage Measuring Range 100 - 250V AC [50Hz]
Impedance Ranges 20/200/2000Ω
Nominal Test Current 25A (20Ω range) 15mA (200Ω range) 15mA (2000Ω range)
Accuracy 20Ω range ±(3%rdg +4dgt)
200Ω range ±(3%rdg +8dgt)
2000Ω range ±(3%rdg +4dgt)
PSC Testing
Rated Voltage 230V AC +10%-15% [50Hz]
PSC Ranges 200A (15mA Test Current)
2000A (25A Test Current)
20kA (25A Test Current)
Accuracy PSC accuracy derived from measured loop impedance specification
and measured voltage specification
RCD Testing
Rated Voltage 230V AC +10%-15% [50Hz]
Trip Current Settings RCD × 1/2 : 10,30,100,300,500,1000mA
RCD × 1 : 10,30,100,300,500,1000mA
RCD × 5 : 10,30,100,300mA (on × 5 ranges max current 1A)
Trip Current Duration RCD × 1/2 × 1: 2000ms
RCD fast: 50ms
Accuracy Trip current +10%-0% of test current at 230V
Trip time ±(1%rdg + 3dgt)
Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61557
Power source LR6 (1.5V) × 8
Dimensions 130(L) × 183(W) × 100(D)mm
Weight 1100g approx.
Included Accessories *KAPM10
(Molded plug test leads for loop and RCD testing at sockets)
7122B (Test leads)
7132A (External earth probe)
Pouch for Test Leads
9121 (Shoulder Strap)
Battery LR6 (1.5V) × 8
Instruction Manual
Optional Accessories 7133B (Distribution board test leads)

*KAMP10(EU):European SHUKO plug
  KAMP10(UK):British plug(13A)
  KAMP10 (AU):Australian plug
  KAMP10(SA):South African plug
