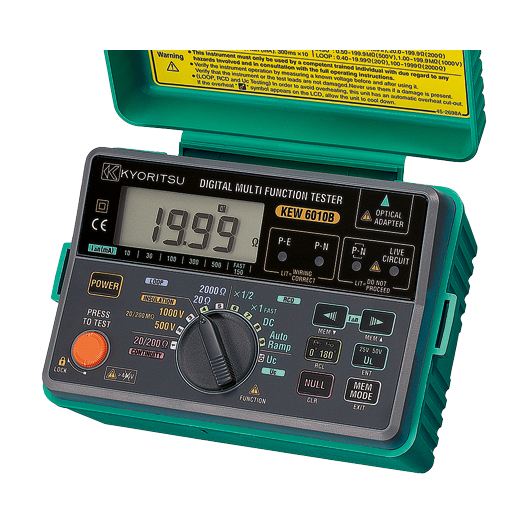

Specification
Continuity Testing | |||
---|---|---|---|
Measuring Range | 20/200Ω (Auto-Ranging) | ||
Open Circuit Voltage | > 6V | ||
Short Circuit Current | > 200mA | ||
Accuracy | ±(3%rdg + 3dgt) | ||
Insulation Resistance Testing | |||
Measuring Range | 20/200MΩ (Auto-Ranging) | ||
Test Voltage | 500/1000V | ||
Open Circuit Voltage | +20 to 0% | ||
Rated Current | > 1mA | ||
Accuracy | ± (3%rdg + 3dgt) | ||
Loop Impedance Testing | |||
Impedance Range | 20/2000Ω | ||
Rated Voltage | 230V + 10 to 15%(50Hz) | ||
Normal Test Current | 20Ω:25A/10ms 2000Ω:15mA/350ms max. |
||
Accuracy | ±(3%rdg + 8dgt) | ||
RCD Testing | |||
Test Current (Test Current Duration) |
x1/2, x1 | 10, 30, 100, 300, 500mA (2000ms) | |
Fast | 150mA (50ms) | ||
DC | 10, 30, 100, 300mA (2000ms), 500mA (200ms) | ||
Auto Ramp | Goes up by 10% from 20% to 110% of IΔn. 300ms×10 | ||
Rated Voltage | 230V + 10 to 15% [50Hz] | ||
Accuracy | Test Current | x1/2: -8 to 2% x1, FAST: +2%+8% DC: ±10% Auto Ramp: ±4% |
|
Trip Time | ±(1%rdg + 3dgt) | ||
Uc Testing | |||
Measuring Range | 100V | ||
Rated Voltage | 230V + 10 to 15% (50Hz) | ||
Test Current | 5mA at IΔn = 10mA 15mA at IΔn = 30/100mA 150mA at IΔn = 300/500mA |
||
Accuracy | +5% +15%rdg±8dgt | ||
Applicable standards | IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2, IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40) | ||
Power source | R6/LR6 × 8 | ||
Dimension | 115(L) × 175(W) × 86(D)mm | ||
Weight | Approx. 840g | ||

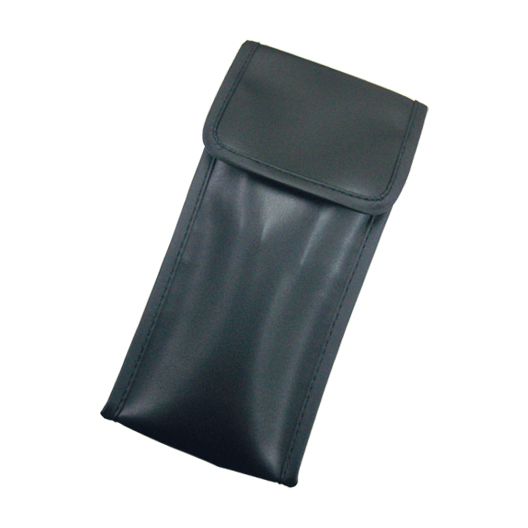

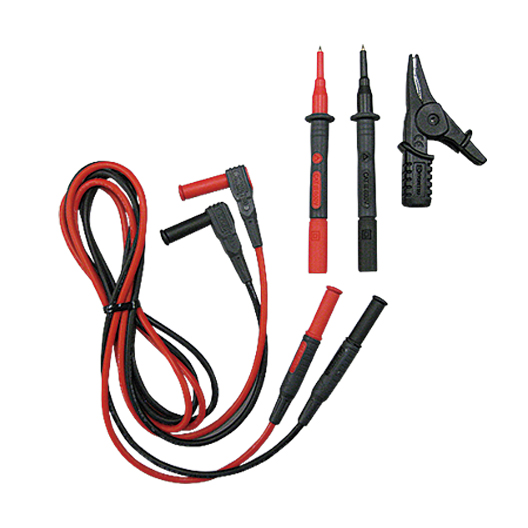

Accessories | 7122B (Test leads) KAMP10 (Test lead with IEC connector)*1 8923 (Fuse[0.5A/600V] × 1 (included), 1 (spare) 9092 (Cord case) 9121 (Shoulder strap) Shoulder pad Instruction manual, R6(AA) × 8 |
||
Optional Accessories | 7133B (Distribution board test leads) 8212-USB (USB adapter) |
Please download “KEW Report(software)” from here.

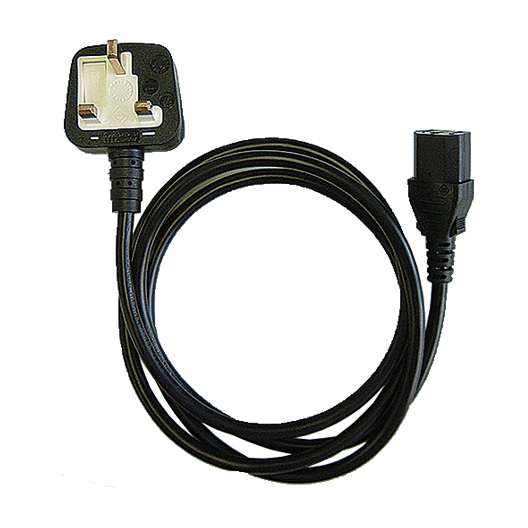

*1 KAMP10 (AU): Australian plug
KAMP10 (UK): British plug (13A)
KAMP10 (EU): European SHUKO plug
KAMP10 (SA): South African plug
