HIGH VOLTAGE INSULATION TESTER
Replacement Products

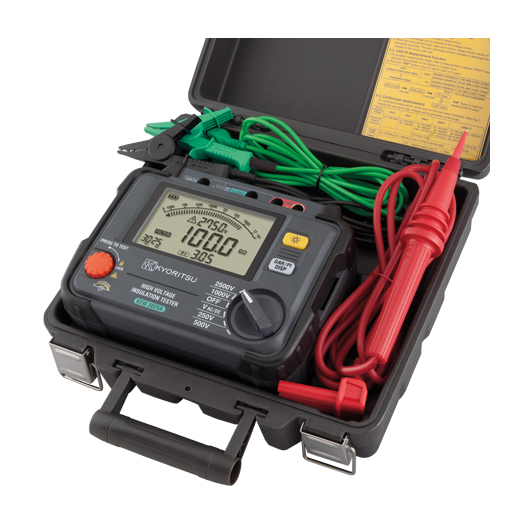

High Voltage Insulation Tester
- Short-Circuit Current up to 1.5mA
- Diagnosis Function of PI and DAR
- Newly-designed alligator clip
- It comes with a tough hard case
- Filter function reduces noise interference for obtaining stable measurement
- Large display with Bar Graph indication and backlight
- Live voltage warning
- Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Specification
Insulation resistance |
||||
|---|---|---|---|---|
| Test voltage | 250V | 500V | 1000V | 2500V |
| Measuring range | 0.0 - 100.0MΩ | 0.0 - 99.9MΩ 80 - 1000MΩ |
0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 2.00GΩ |
0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 9.99GΩ 8.0 - 100.0GΩ |
| Accuracy | ±5%rdg±3dgt | ±5%rdg±3dgt | ±5%rdg±3dgt | ±5%rdg±3dgt |
| Short circuit current | 1.5mA | |||
| Rated test current | 0.7 - 0.9mA at 0.25MΩ load | 0.8 - 1mA at 0.5MΩ load | 1 - 1.2mA at 1MΩ load | 1 - 1.2mA at 2.5MΩ load |
| Open circuit current | 250V +10%,-10% | 500V +20%,-10% | 1000V +20%,-0% | 2500V +20%,-0% |
Voltage measurement |
||||
| Measuring range | AC: 30 - 600V (50/60Hz) DC: ±30 - ±600V |
|||
| Accuracy | ±2%rdg±3dgt | |||
| General | ||||
| Applicable standards | IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-031, IEC 61326-1, 2-2 |
|||
| Power source | DC12V : LR14/R14 × 8pcs | |||
| Dimension | 177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Carring case [Hard]) |
|||
| Weight |
1.7kg approx. (including batteries) 4kg approx. (including accessories) |
|||
| Accessories | 7165A (Line probe) 7264 (Earth cord) 7265 (Guard cord) 8019 (Hook type prod) 9180 (Carring case [Hard]) LR14 (Alkaline battery size C) × 8 Instruction manual |
|||
| Optional accessories | 7168A (Line probe with alligator clip) 7253 (Longer line probe with alligator clip) 8302 (Adaptor for recorder) |
|||
