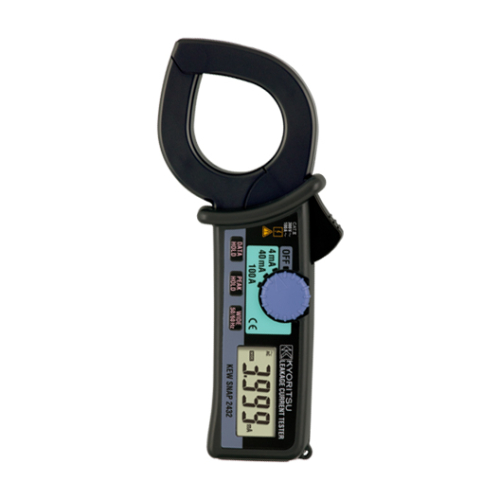

LEAKAGE CLAMP METER

MODEL 2432

Frequency Selector Switch to eliminate the effect of harmonics

Specification

AC A (50/60Hz)	4/40mA/100A ±1%rdg±5dgt (4/40mA) ±1%rdg±5dgt (0 - 80A) ±5%rdg (80.1 - 100A)
AC A (WIDE)	4/40mA/100A ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [20Hz - 1kHz] (4/40mA) ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [40Hz - 1kHz] (0 - 80A) ±5%rdg [50/60Hz], ±10%rdg [40Hz - 1kHz] (80.1 - 100A)
Maximum circuit voltage	600V AC/DC (between line/neutral) 300V AC/DC (against earth)
Conductor size	φ40mm max.
Frequency response	20Hz - 1kHz [40Hz - 1kHz:100A]
Effect of External Stray Magnetic Field	Approx. 2mA AC in proximity to a 15mm conductor carrying 100A AC
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032
Response Time	Approx. 2 seconds
Power source	Two R03 or equivalent (DC1.5V) batteries
Dimension	185(L) × 81(W) × 32(D)mm
Weight	Approx. 290g (including battery)
Accessories	9097 (Carrying Case) R03(1.5V) × 2 Instruction Manual
